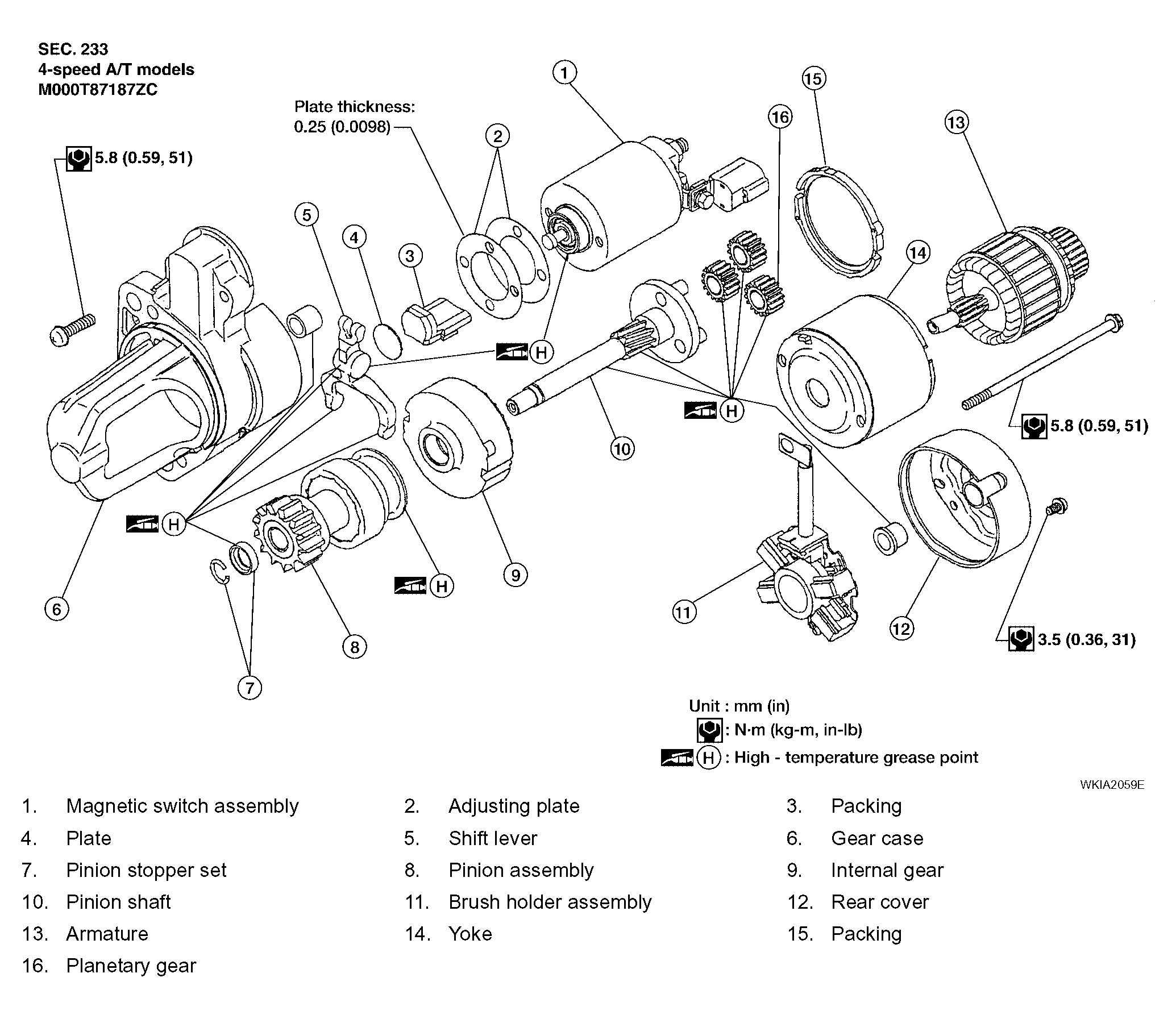

Fig 1: Exploded View Of Starter Motor (4 Speed A/T Models) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

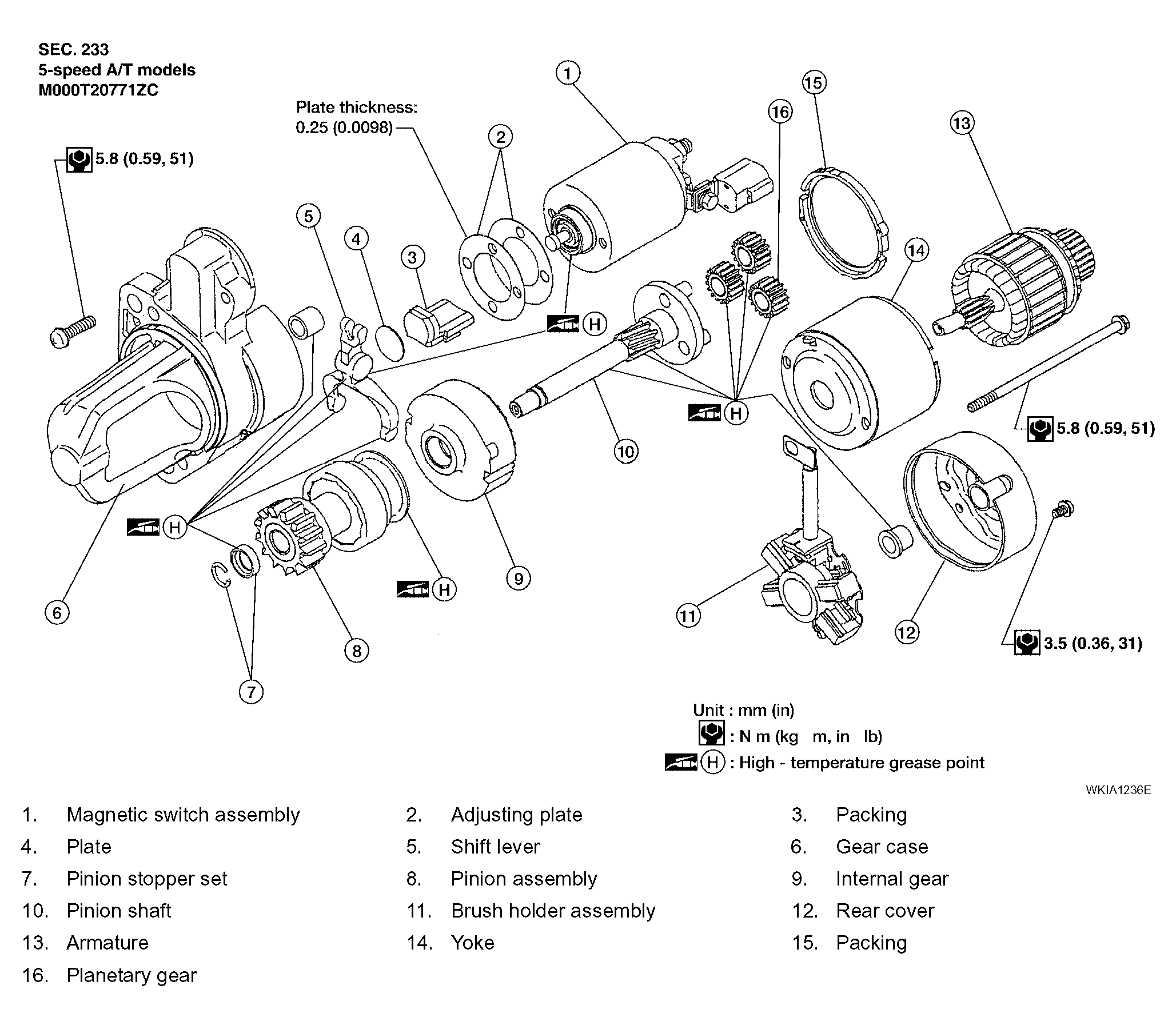

Fig 2: Exploded View Of Starter Motor (5 Speed A/T Models) With Torque Specifications
