Lifting Sensor (Rear) Circuit Inspection

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

Check operation with "LIFT RR PULSE" on the DATA MONITOR to make sure pulse changes.

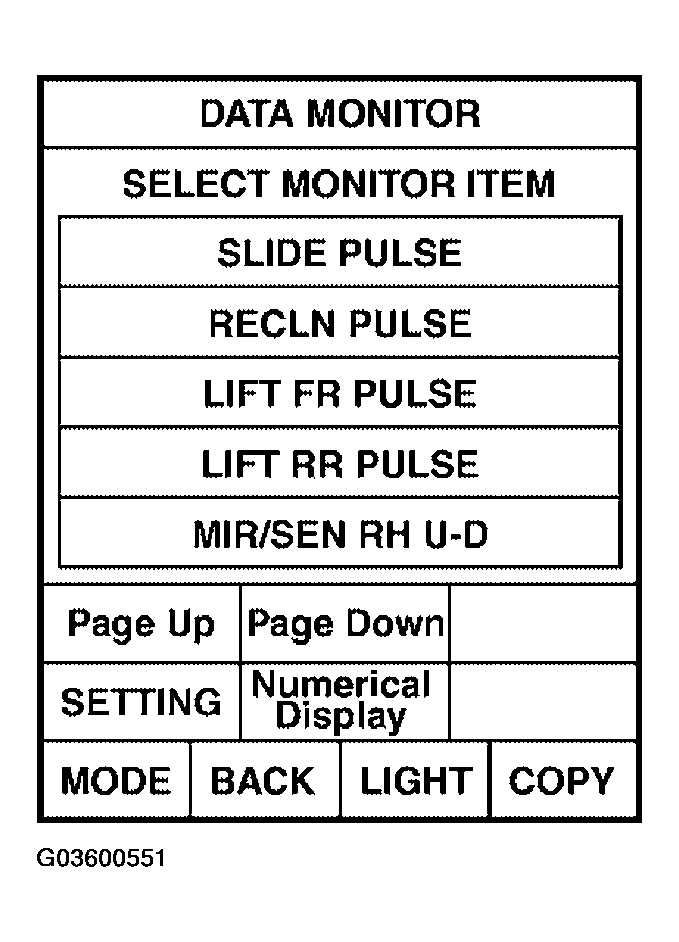

Fig 1: Identifying Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

LIFT RR PULSE DATA MONITOR

Monitor item [OPERATION or UNIT]
LIFT RR PULSE	-	The rear lifting position (pulse) judged from the lifting sensor (rear) is displayed.

Without CONSULT-II

Turn ignition switch OFF.
Check signal between driver seat control unit connector and ground, with oscilloscope.

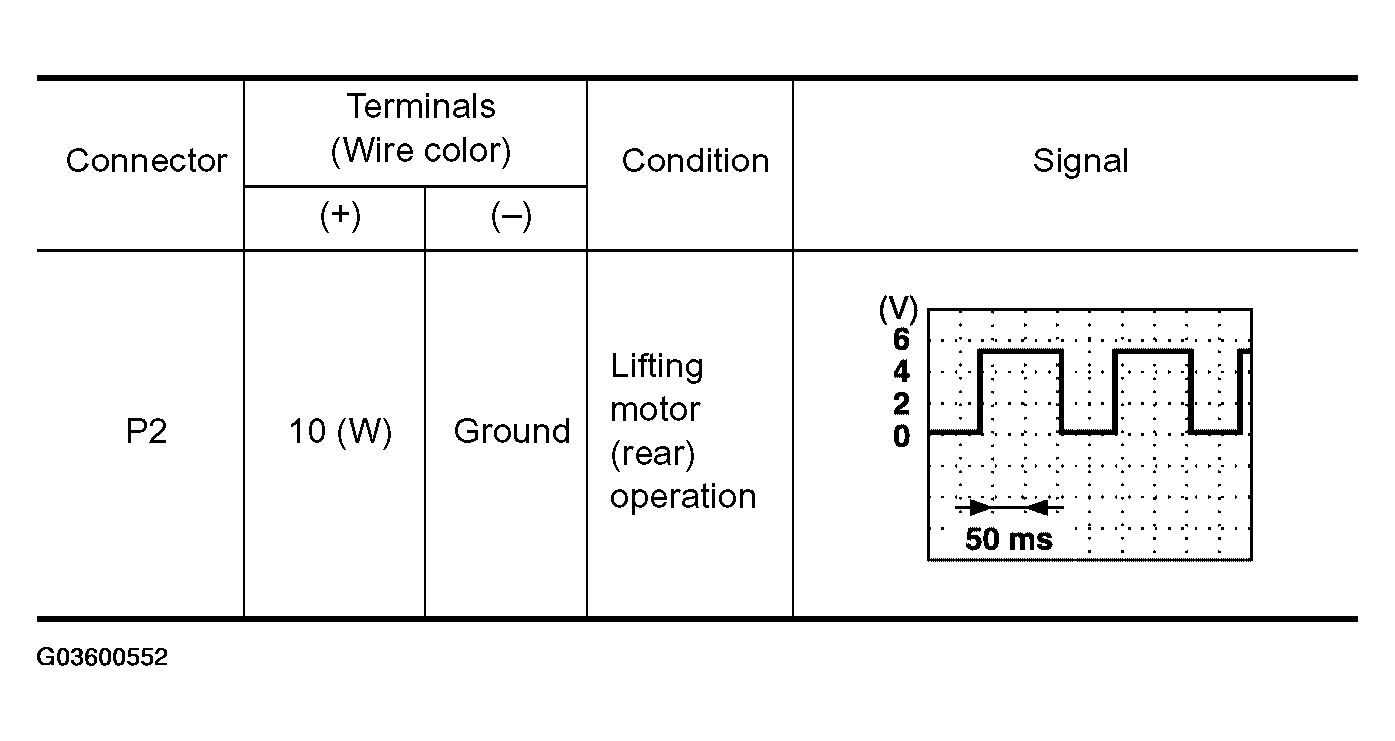

Fig 2: Signal Between Driver Seat Control Unit Connector & Ground Reference Table
Courtesy of NISSAN MOTOR CO., U.S.A.

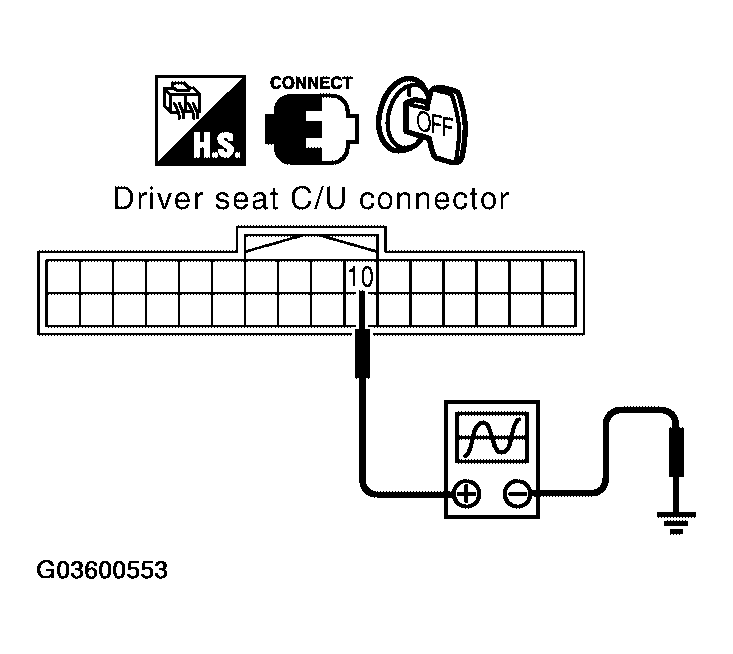

Fig 3: Checking Signal Between Driver Seat Control Unit Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Lifting sensor (rear) circuit is OK.
NG : GO TO 2.

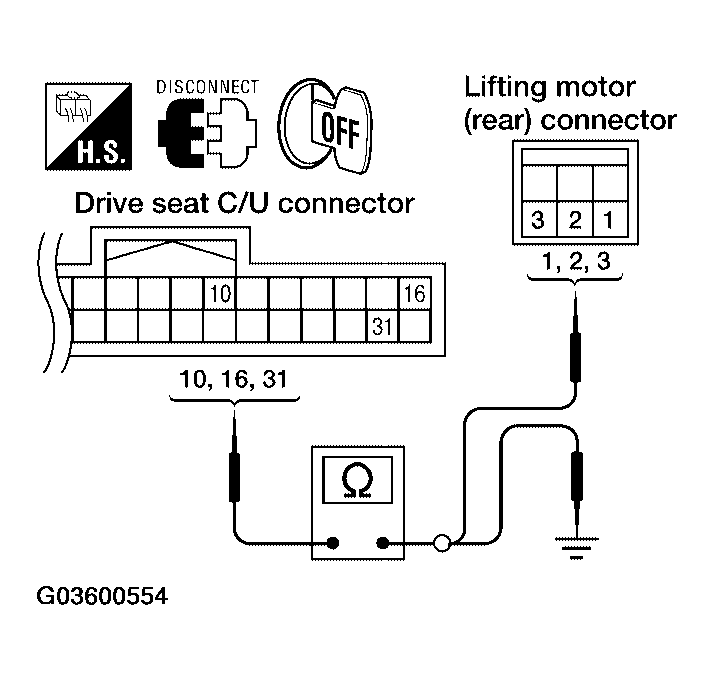

CHECK LIFTING MOTOR (REAR) SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and lifting motor (rear).
2. Check continuity between driver seat control unit connector P2 terminals 10, 16, 31 and lifting motor (rear) connector P7 terminals 1, 2, 3.
  10 (W) - 2 (W) : Continuity should exist .

  16 (W) - 3 (W) : Continuity should exist .

  31 (L/Y) - 1 (L/Y) : Continuity should exist .
3. Check continuity between driver seat control unit connector P2 terminals 10, 16, 31 and ground.
  10 (W) - Ground : Continuity should not exist .

  16 (W) - Ground : Continuity should not exist .

  31 (L/Y) - Ground : Continuity should not exist .
OK or NG
- OK : Replace lifting motor (rear). Refer to "REMOVAL AND INSTALLATION ".
- NG : Repair or replace harness.
