Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.
  2. Disconnect transfer control device harness connector.
  3. Remove breather hose from transfer control device.
  4. Remove bolts and detach control device.

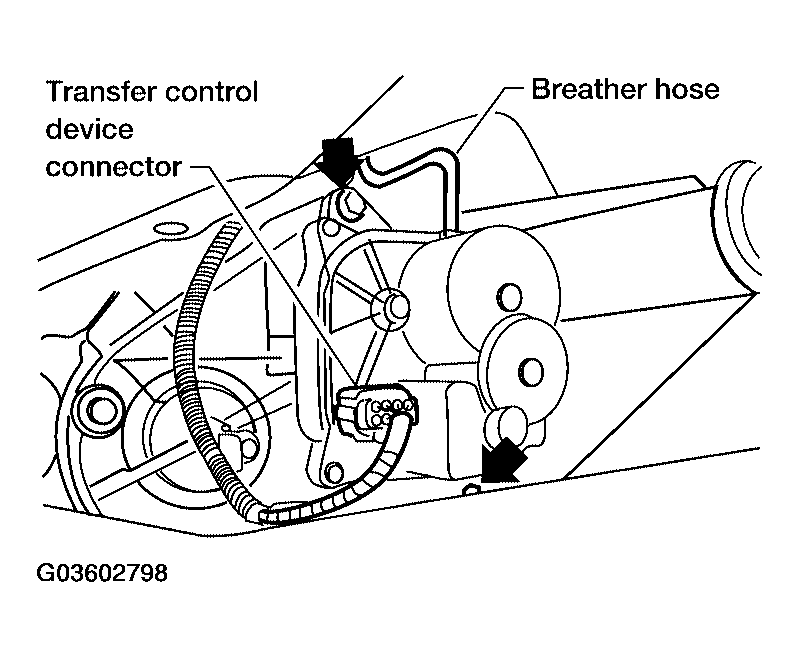

    Fig 1: Disconnecting Transfer Control Device Harness Connector & Removing Breather Hose
    G03602798Courtesy of NISSAN MOTOR CO., U.S.A.
