Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Apply ATF to periphery of metal bushing, then install the metal bushing until it becomes dimension "A", using Tool.
Dimension A: 7.7 - 8.3mm (0.303 - 0.327in)

Tool number: ST35300000 (-)

CAUTION: Do not reuse metal bushing.

Fig 1: Applying ATF & Installing Metal Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply ATF to needle bearing, then install the needle bearing until it becomes dimension "B", using Tool.
Dimension B: 62.5 - 63.1mm (2.461 - 2.484in)

Tool number: ST33220000 (-)

CAUTION: Do not reuse needle bearing.

Fig 2: Applying ATF & Installing Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the carrier bearing to sun gear, using Tools.
Tool number A: ST30720000 (J-25405)

B: ST27863000 (-)

Fig 3: Installing Carrier Bearing To Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to sun gear assembly, using suitable tool.
CAUTION: Do not reuse snap ring.

Fig 4: Installing Snap Ring To Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install sun gear assembly to planetary carrier assembly.
Install snap ring to planetary carrier assembly.
CAUTION: Do not reuse snap ring.

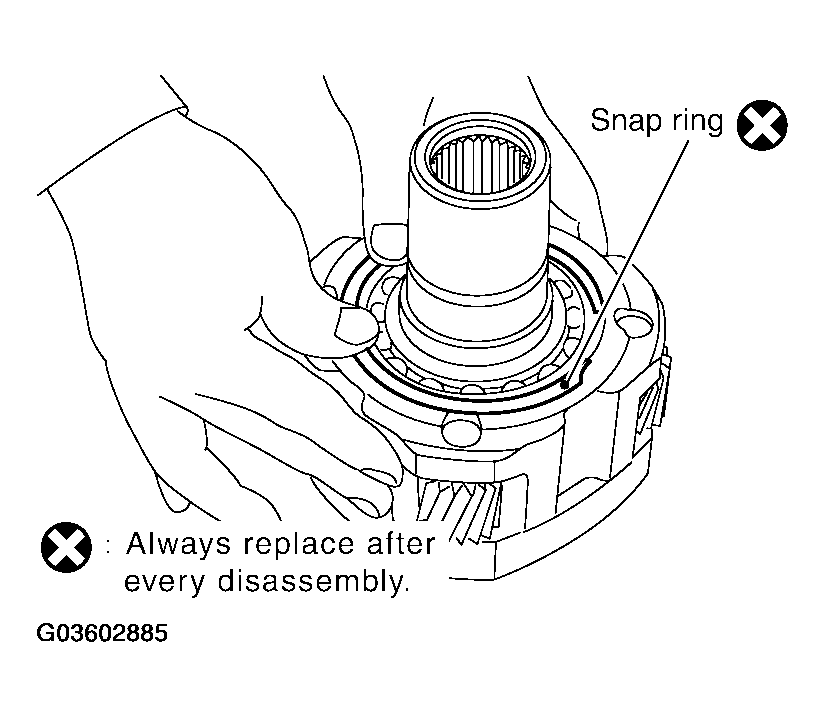

Fig 5: Installing Snap Ring To Planetary Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
