Crew Cab

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

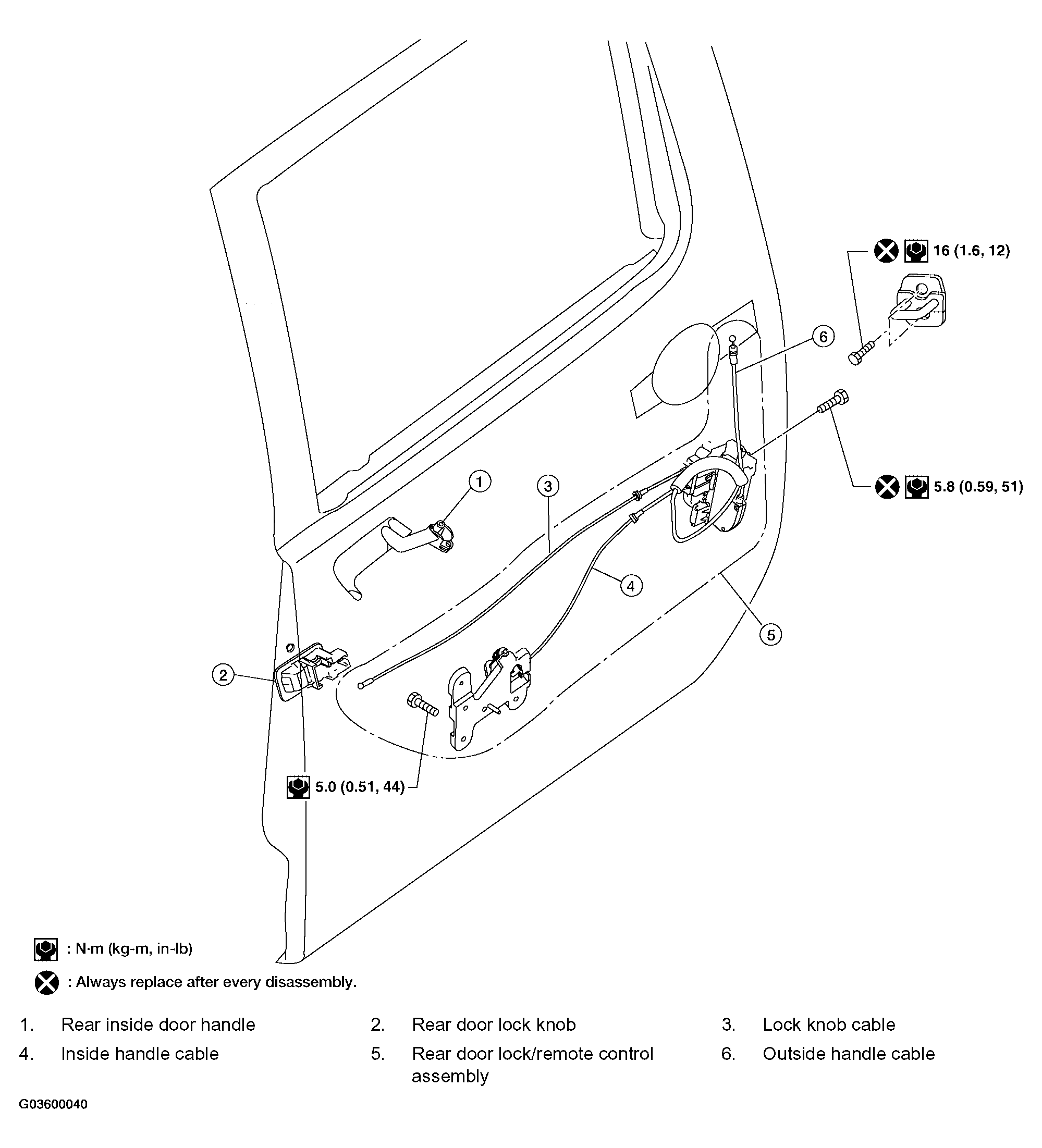

Fig 1: Exploded View Of Rear Door Lock With Torque Specifications - Crew Cab
G03600040Courtesy of NISSAN MOTOR CO., U.S.A.
