With GST

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

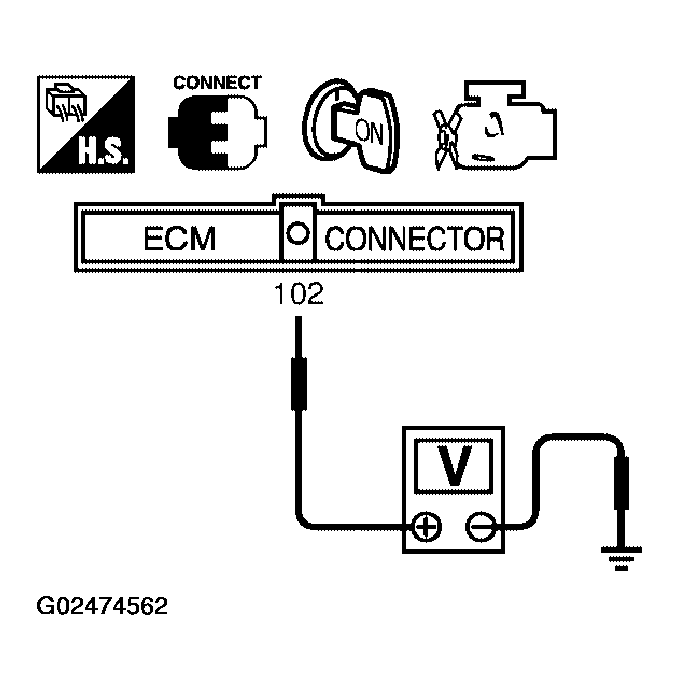

    Fig 1: Checking Voltage Between ECM Terminal 102 & Ground
    G02474562Courtesy of NISSAN MOTOR CO., U.S.A.
    VOLTAGE REFERENCE TABLE

    Condition (Gear position) Voltage V (Known good data)
    P or N position Approx. 0
    Except the above position BATTERY VOLTAGE (11 -14V)
  3. If NG, go to "DIAGNOSTIC PROCEDURE "
