Cooling Fan Ecu: Components

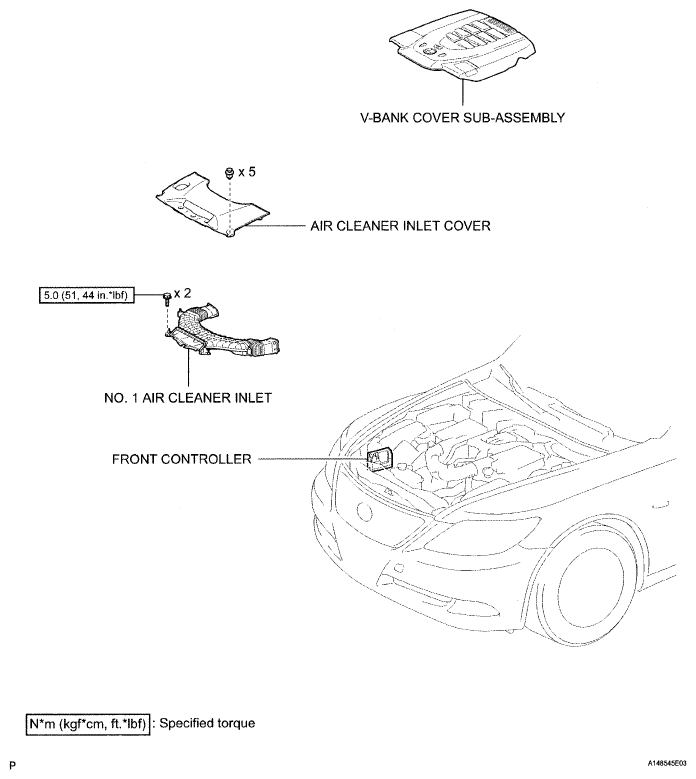

Fig 1: Identifying Cooling Fan ECU Components (1 Of 2)
G04948206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

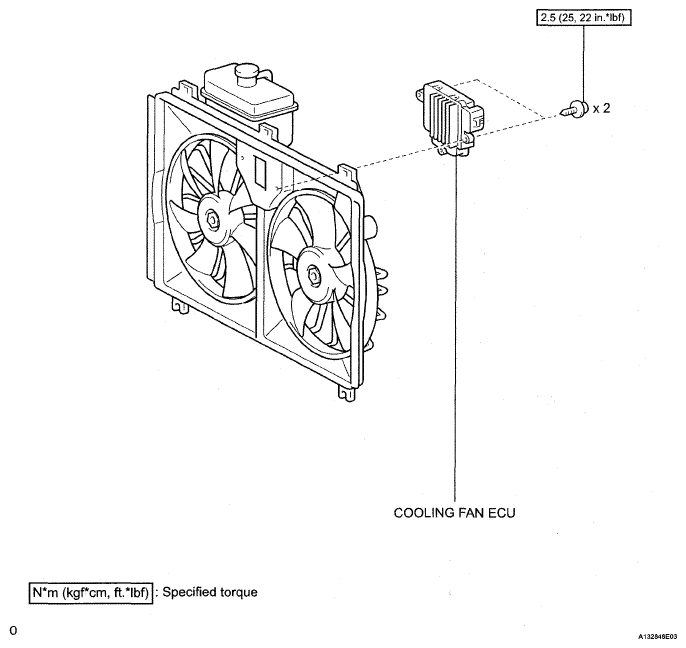

Fig 2: Identifying Cooling Fan ECU Components (2 Of 2)
G04948207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
