Parts Location

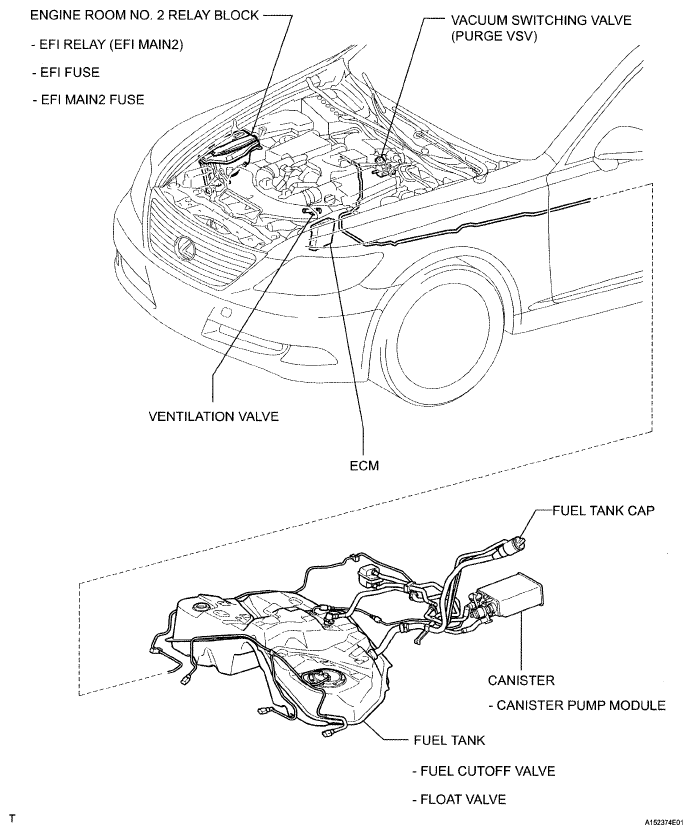

Fig 1: Identifying Emission Control System Components

G04943701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
