Inspection Procedure

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration (see INITIALIZATION  ).

HINT:

Start the inspection from "CHECK HARNESS AND CONNECTOR" when using the intelligent tester or Techstream and start from "PERFORM TEST MODE" when not using the intelligent tester or Techstream.

  1. CHECK HARNESS AND CONNECTOR (MOMENTARY INTERRUPTION)
    1. Using the intelligent tester, check for any momentary interruption in the wire harness and connector corresponding to a DTC (see CHECK FOR INTERMITTENT PROBLEMS  ).
      1. Intelligent tester

        Skid control ECU:

        SKID CONTROL ECU

        Tester Display Measurement Item/Range Normal Condition Diagnostic Note
        RR SPD OPN Rear speed sensor RH open detection / ERROR or NORMAL ERROR: Momentary interruption
        NORMAL: Normal        		 -
        RL SPD OPN Rear speed sensor LH open detection / ERROR or NORMAL ERROR: Momentary interruption
        NORMAL: Normal        		 -
      2. Techstream

        Skid control ECU:

        SKID CONTROL ECU

        Tester Display Measurement Item/Range Normal Condition Diagnostic Note
        RR Speed Open Rear speed sensor RH open detection / ERROR or NORMAL ERROR: Momentary interruption
        NORMAL: Normal        		 -
        RL Speed Open Rear speed sensor LH open detection / ERROR or NORMAL ERROR: Momentary interruption
        NORMAL: Normal        		 -

        OK: There are no momentary interruptions.

        HINT:

        Perform the above inspection before removing the sensor and connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPEED SENSOR CIRCUIT)

    OK: GO TO NEXT STEP

  2. READ VALUE OF INTELLIGENT TESTER (REAR SPEED SENSOR)
    1. Connect the intelligent tester or Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Select the DATA LIST mode on the intelligent tester or Techstream.
      1. Intelligent tester

        Skid control ECU:

        SKID CONTROL ECU

        Tester Display Measurement Item/Range Normal Condition Diagnostic Note
        RL WHEEL SPD Rear wheel speed sensor LH reading / min.: 0 km/h (0 mph), max.: 326 km/h (202 mph) Actual wheel speed Similar speed as indicated on speedometer
        RR WHEEL SPD Rear wheel speed sensor RH reading / min.: 0 km/h (0 mph), max.: 326 km/h (202 mph) Actual wheel speed Similar speed as indicated on speedometer
      2. Techstream

        Skid control ECU:

        SKID CONTROL ECU

        Tester Display Measurement Item/Range Normal Condition Diagnostic Note
        RL Wheel Speed Rear wheel speed sensor LH reading / min.: 0 km/h (0 mph), max.: 326 km/h (202 mph) Actual wheel speed Similar speed as indicated on speedometer
        RR Wheel Speed Rear wheel speed sensor RH reading / min.: 0 km/h (0 mph), max.: 326 km/h (202 mph) Actual wheel speed Similar speed as indicated on speedometer
    4. Check that the speed value output from the speed sensor displayed on the intelligent tester or Techstream and the speed value displayed on the speedometer are almost the same when driving the vehicle.

      OK: The speed value output from the speed sensor displayed on the intelligent tester or Techstream is the same as the actual vehicle speed.

      1. Intelligent tester

        Skid control ECU:

        SKID CONTROL ECU

        Tester Display Measurement Item/Range Normal Condition Diagnostic Note
        RR WHEEL DIR Rear wheel direction RH / FORWARD or BACK FORWARD: Forward
        BACK: Back        		 -
        RL WHEEL DIR Rear wheel direction LH / FORWARD or BACK FORWARD: Forward
        BACK: Back        		 -
      2. Techstream

        Skid control ECU:

        SKID CONTROL ECU

        Tester Display Measurement Item/Range Normal Condition Diagnostic Note
        RR Wheel Direction Rear wheel direction RH / FORWARD or BACK FORWARD: Forward
        BACK: Back        		 -
        RL Wheel Direction Rear wheel direction LH / FORWARD or BACK FORWARD: Forward
        BACK: Back        		 -
    5. Check that the sensor signal conforms to the wheel direction.

      OK: The wheel direction is displayed.

    NG: Go to step   5

    OK: GO TO NEXT STEP

  3. PERFORM TEST MODE (SIGNAL CHECK)
    1. Clear the DTC (see DTC CHECK/CLEAR  ).
    2. Perform sensor signal check in "TEST MODE PROCEDURE" (see TEST MODE PROCEDURE  ).

      OK: All Test Mode DTCs are erased.

    NG: Go to step   5

    OK: GO TO NEXT STEP

  4. RECONFIRM DTC
    1. Clear the DTC (see DTC CHECK/CLEAR  ).
    2. Start the engine.
    3. Drive the vehicle at the speed of 32 km/h (20 mph) or more for 60 seconds or more.
    4. Check if the same DTCs are recorded (see DTC CHECK/CLEAR  ).

      Result

      RESULT REFERENCE

      Result Proceed to
      DTCs (C0210/33 and C0215/34) are not output A
      DTCs (C0210/33 and C0215/34) are output B

      HINT:

      If troubleshooting has been carried out according to the "PROBLEM SYMPTOMS TABLE", refer back to the table and proceed to the next step (see PROBLEM SYMPTOMS TABLE  ).

    B: Go to step   11

    A: GO TO NEXT STEP

    END

  5. INSPECT REAR SPEED SENSOR INSTALLATION
      Fig 1: Identifying Clearance Between Sensor And Rear Axle Carrier
      G04949608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the sensor installation.

      OK: There is no clearance between the sensor and the rear axle carrier.

      The installation bolt is tightened properly.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE: Check the speed sensor signal after replacement (see TEST MODE PROCEDURE  ).

    NG: SECURELY REINSTALL REAR SPEED SENSOR (See  REMOVAL   )

    OK: GO TO NEXT STEP

  6. INSPECT REAR SPEED SENSOR TIP
    1. Remove the rear speed sensor.
    2. Check the sensor tip.

      OK: No scratches or foreign matter on the sensor tip.

      NOTE: Check the speed sensor signal after cleaning/ replacement (see TEST MODE PROCEDURE  ).

    NG: CLEAN OR REPLACE REAR SPEED SENSOR

    OK: GO TO NEXT STEP

  7. CHECK REAR SPEED SENSOR WIRE

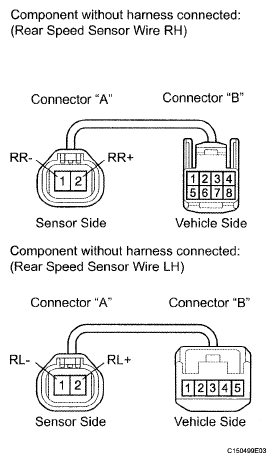

      Fig 2: Checking Rear Speed Sensor Wire
      G04949609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the rear speed sensor wire.
    2. Disconnect the rear speed sensor wire.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance:

      for RH

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      "A"-2 (RR+) - "B"-3 Always Below 1 Ω
      "A"-2 (RR+) - "B"-4 Always 10 kΩ or higher
      "A"-2 (RR+) - Body ground Always 10 kΩ or higher
      "A"-1 (RR-) - "B"-4 Always Below 1 Ω
      "A"-1 (RR-) - "B"-3 Always 10 kΩ or higher
      "A"-1 (RR-) - Body ground Always 10 kΩ or higher

      for LH

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      "A"-2 (RL+) - "B"-4 Always Below 1 Ω
      A"-2 (RL+) - "B"-5 Always 10 kΩ or higher
      "A"-2 (RL+) - Body ground Always 10 kΩ or higher
      "A"-1 (RL-) - "B"-5 Always Below 1 Ω
      "A"-1 (RL-) - "B"-4 Always 10 kΩ or higher
      "A"-1 (RL-) - Body ground Always 10 kΩ or higher
      NOTE: Check the speed sensor signal after replacement (see TEST MODE PROCEDURE  ).

    NG: REPLACE REAR SPEED SENSOR WIRE

    OK: GO TO NEXT STEP

  8. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - REAR SPEED SENSOR)

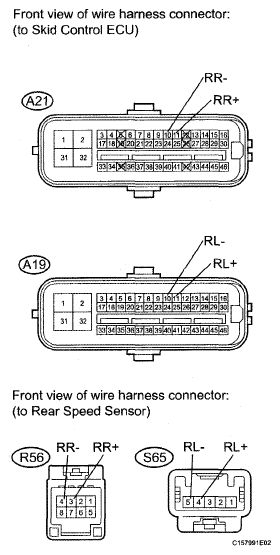

    Fig 3: Identifying A19, A21 ECU Connector And R56 Sensor Connector
    G04949610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A19 and A21 ECU connectors.
    2. Disconnect the R56 sensor connector.
    3. Disconnect the S65 sensor connector.
    4. Measure the resistance according to the value (s) in the table below.

      Standard resistance:

      for RH

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      A21-11 (RR+)-R56-3 (RR+) Always Below 1 Ω
      A21-10 (RR-)-R56-4 (RR-) Always Below 1 Ω
      A21-11 (RR+)-Body ground Always 10 kΩ or higher
      A21-10 (RR-)-Body ground Always 10 kΩ or higher

      for LH

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      A19-11 (RL+)-S65-4 (RL+) Always Below 1 Ω
      A19-10 (RL-)-S65-5 (RL-) Always Below 1 Ω
      A19-11 (RL+)-Body ground Always 10 kΩ or higher
      A19-10 (RL-)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  9. CHECK SKID CONTROL ECU (SENSOR INPUT VOLTAGE)
      Fig 4: Identifying S65 Sensor Connector And R56 Sensor Connector
      G04949611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Reconnect the A19 and A21 ECU connectors.
    2. Disconnect the R56 sensor connector.
    3. Disconnect the S65 sensor connector.
    4. Turn the engine switch on (IG).
    5. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      R56-3 (RR+) - Body ground Engine switch on (IG) 6.7 to 14 V
      S65-4 (RL+) - Body ground Engine switch on (IG) 6.7 to 14 V

    NG: REPLACE SKID CONTROL ECU (See  REMOVAL   )

    OK: GO TO NEXT STEP

  10. RECONFIRM DTC
    1. Clear the DTC (see DTC CHECK/CLEAR  ).
    2. Start the engine.
    3. Drive the vehicle at the speed of 32 km/h (20 mph) or more for 60 seconds or more.
    4. Check if the same DTCs are recorded (see DTC CHECK/CLEAR  ).

      HINT:

      Reinstall the sensors, connectors, etc. and restore the vehicle to its prior condition before rechecking for DTCs.

      Result

      RESULT REFERENCE

      Result Proceed to
      DTCs (C0210/33 and C0215/34) are output A
      DTCs (C0210/33 and C0215/34) are not output B

      HINT:

      If troubleshooting has been carried out according to the "PROBLEM SYMPTOMS TABLE", refer back to the table and proceed to the next step (see PROBLEM SYMPTOMS TABLE  ).

    B: END

    A: GO TO NEXT STEP

  11. REPLACE REAR SPEED SENSOR
    1. Replace the rear speed sensor (see REMOVAL  ).
      NOTE: Check the speed sensor signal after replacement (see TEST MODE PROCEDURE  ).
  12. RECONFIRM DTC
    1. Clear the DTC (see DTC CHECK/CLEAR  ).
    2. Start the engine.
    3. Drive the vehicle at the speed of 32 km/h (20 mph) or more for 60 seconds or more.
    4. Check if the same DTCs are recorded (see DTC CHECK/CLEAR  ).

      HINT:

      Reinstall the sensors, connectors, etc. and restore the vehicle to its prior condition before rechecking for DTCs.

      Result

      RESULT REFERENCE

      Result Proceed to
      DTCs (C0210/33 and C0215/34) are output A
      DTCs (C0210/33 and C0215/34) are not output B

      HINT:

      If troubleshooting has been carried out according to the "PROBLEM SYMPTOMS TABLE", refer back to the table and proceed to the next step (see PROBLEM SYMPTOMS TABLE  ).

    B: END

    A: GO TO NEXT STEP

  13. INSPECT SPEED SENSOR ROTOR
    1. Remove the speed sensor rotor.
    2. Check the sensor rotor.

      OK: No scratches, oil, or foreign matter on the rotors.

      NOTE: Check the speed sensor signal after cleaning/ replacement (see TEST MODE PROCEDURE  ).

    NG: CLEAN OR REPLACE SPEED SENSOR ROTOR

    OK: REPLACE SKID CONTROL ECU (See  REMOVAL   )
