Brake Hold Standby Indicator Light Circuit: Wiring Diagram

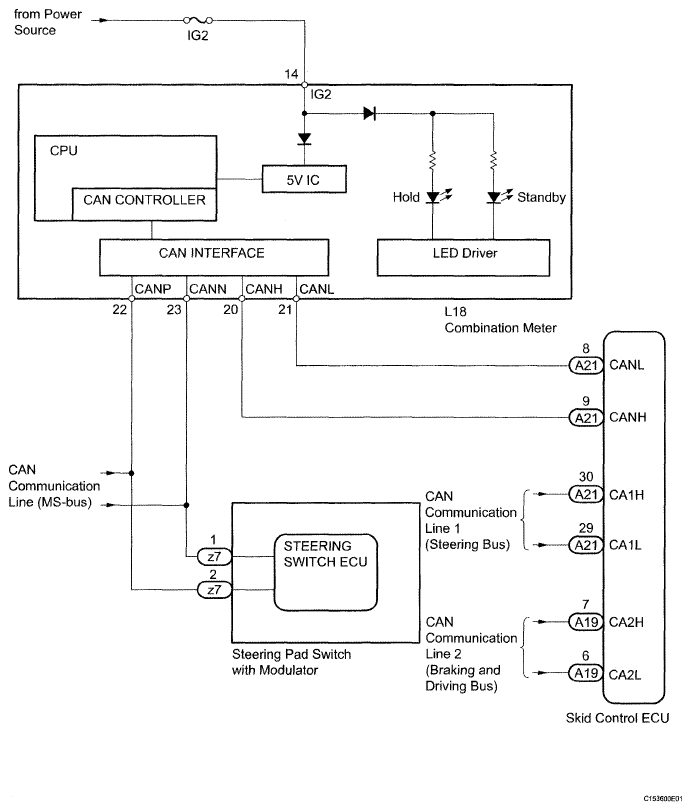

Fig 1: Brake Hold Standby Indicator Light Circuit - Wiring Diagram

G04949677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
