System Diagram

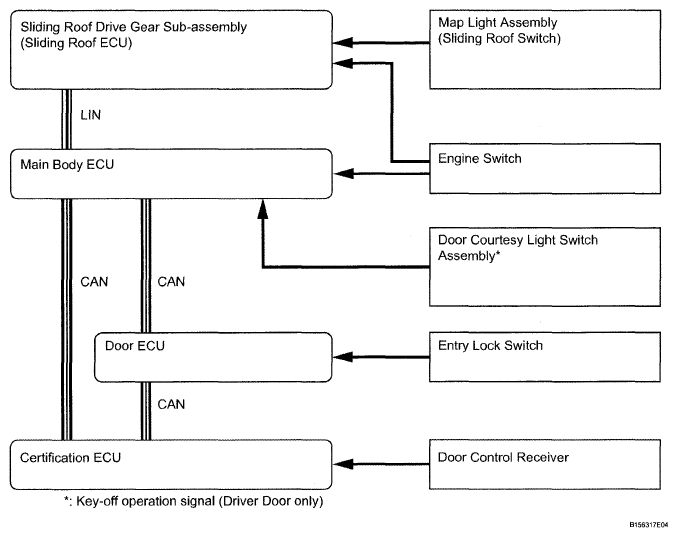

Fig 1: Sliding Roof System - System Diagram

G04953263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Main Body ECU	Sliding Roof ECU	Key-off operation signal (Engine switch status) Key-off operation signal (Courtesy switch status)	LIN
Certification ECU	Sliding Roof ECU	Transmitter-linked open operation signal Entry lock switch-linked close operation	CAN
Front Door ECU LH	Sliding Roof ECU	Key-linked open / close operation	CAN / LIN
Each Door ECU	Certification ECU	Entry lock switch signal	CAN
