Sliding Roof Housing: Components

Fig 1: Identifying Sliding Roof Housing Components (1 Of 3)
G04953279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

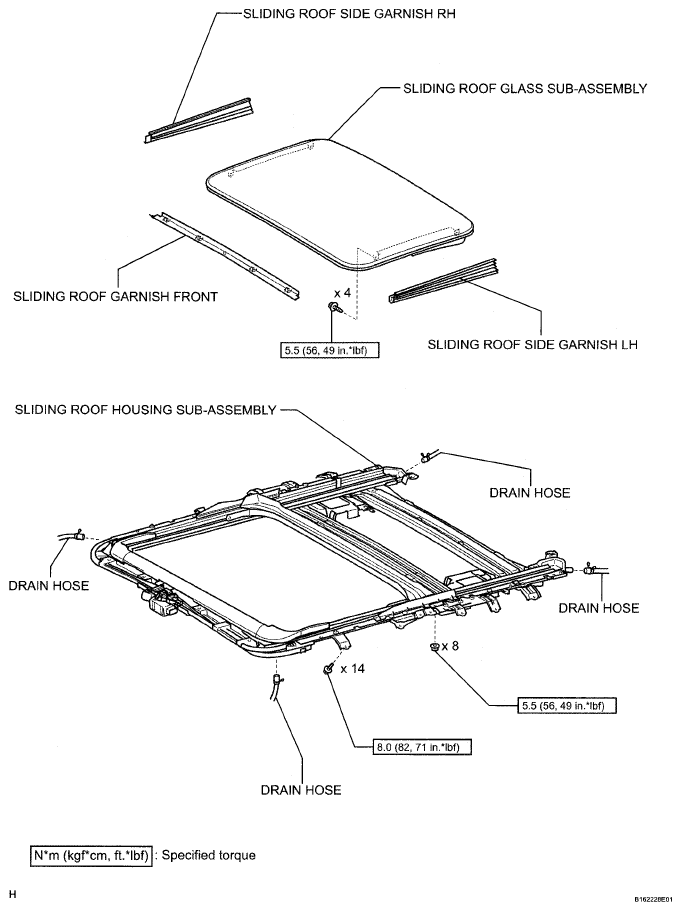

Fig 2: Sliding Roof Housing Replacement Components With Torque Specifications (2 Of 3)
G04953280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

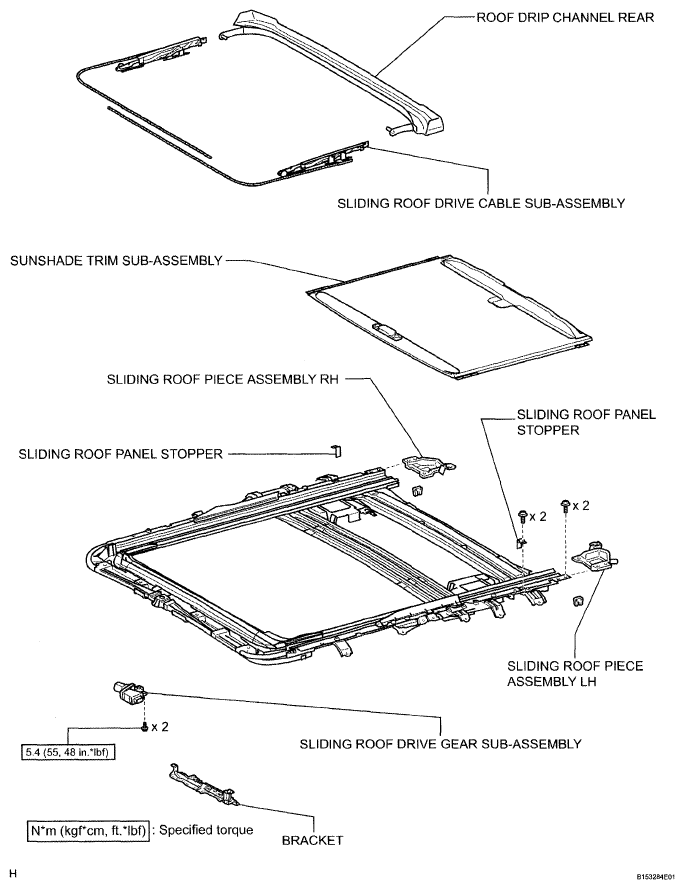

Fig 3: Sliding Roof Housing Replacement Components With Torque Specifications (3 Of 3)
G04953281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
