Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Roof Drip Side Finish Moulding >> Components

Roof Drip Side Finish Moulding: Components

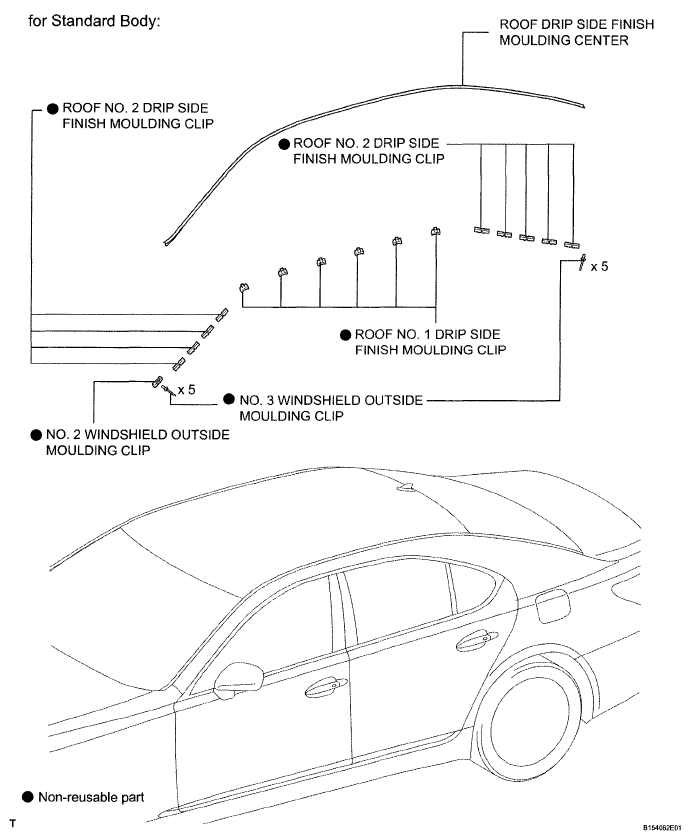

Fig 1: Identifying Roof Drip Side Finish Moulding Components (1 Of 2)
G04946539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

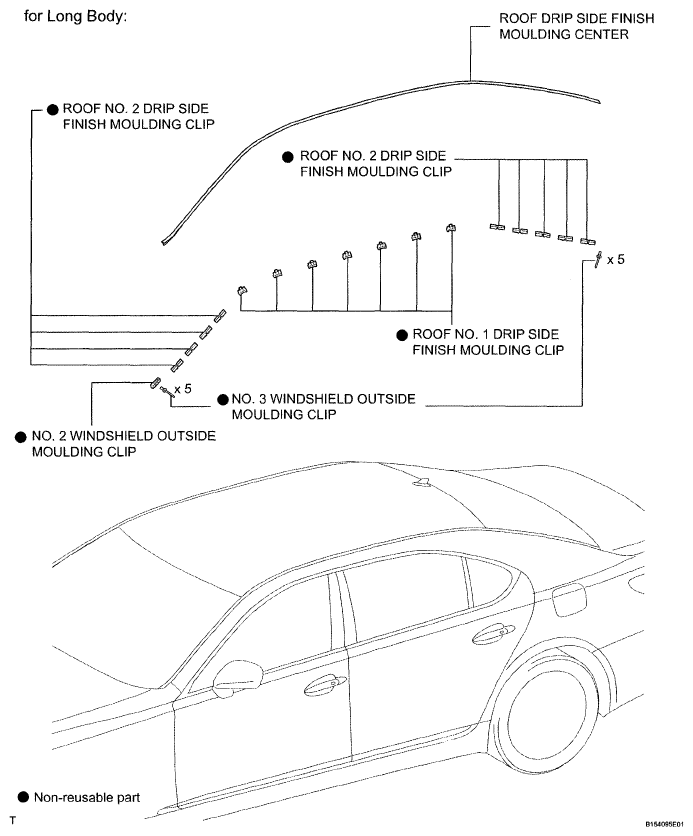

Fig 2: Identifying Roof Drip Side Finish Moulding Components (2 Of 2)
G04946540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
