Rear Bumper: Components

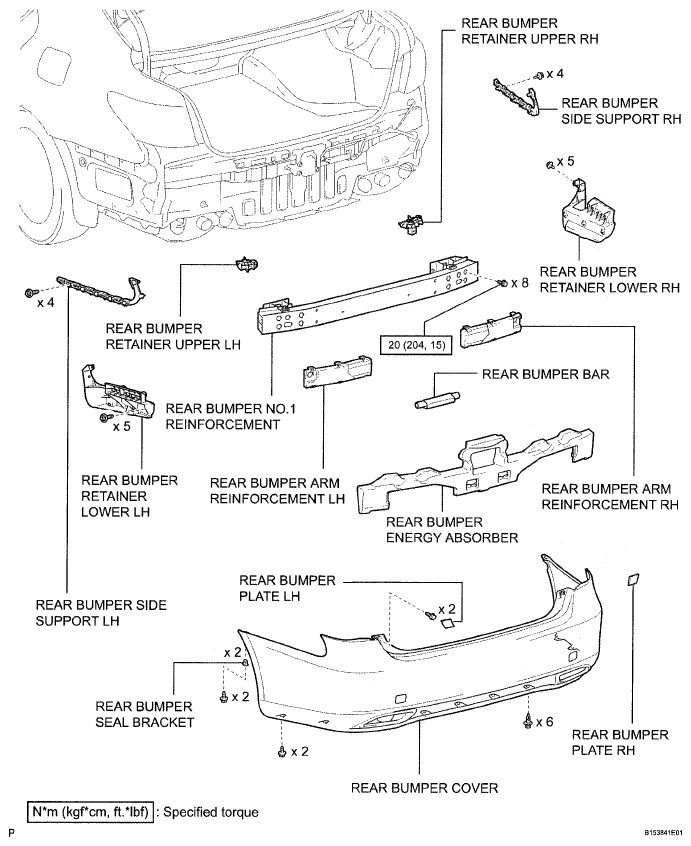

Fig 1: Rear Bumper Replacement Components With Torque Specifications (1 Of 3)
G04946453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

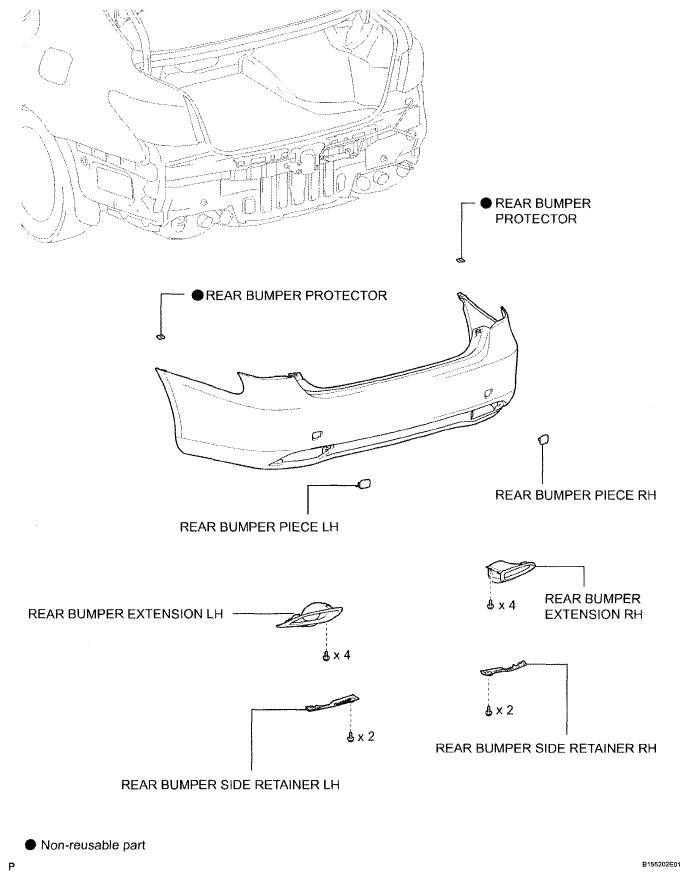

Fig 2: Identifying Rear Bumper Components (2 Of 3)
G04946454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

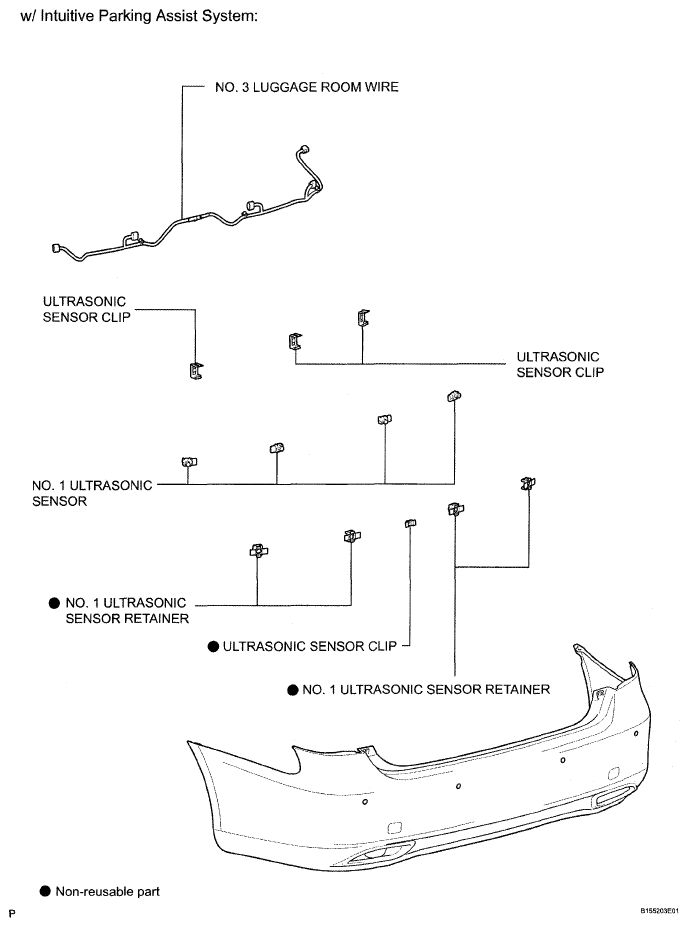

Fig 3: Identifying Rear Bumper Components (3 Of 3)
G04946455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
