Radiator Grille: Components

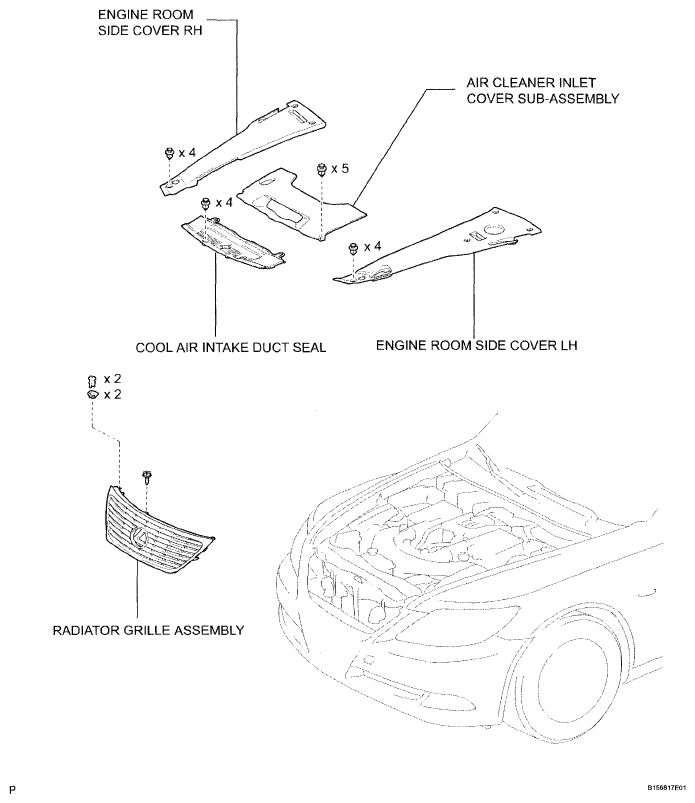

Fig 1: Identifying Radiator Grille Components (1 Of 2)
G04946486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

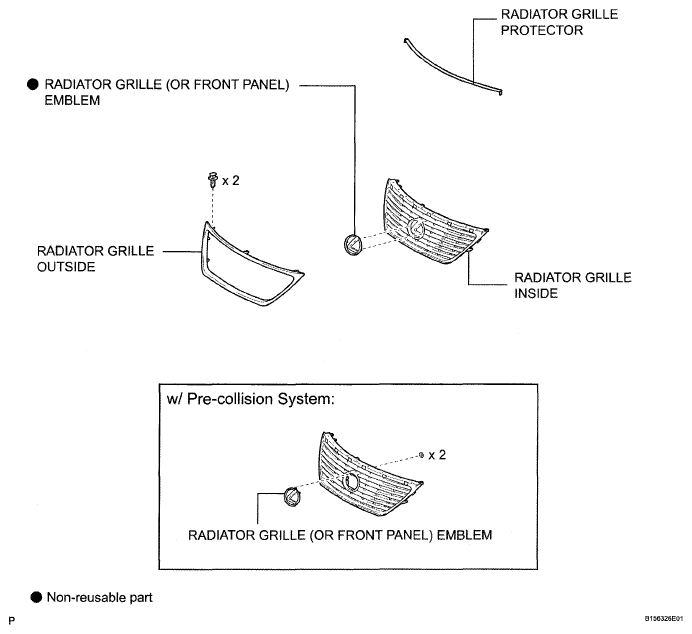

Fig 2: Identifying Radiator Grille Components (2 Of 2)
G04946487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
