Front Door Window Frame Moulding: Components

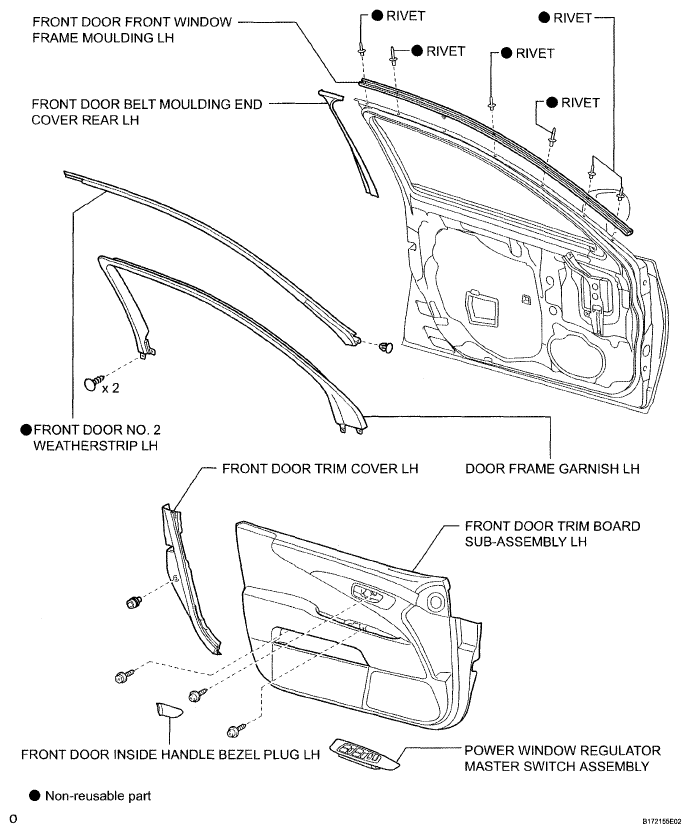

Fig 1: Identifying Front Door Window Frame Moulding Components

G04946602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
