Front Door Belt Moulding: Components

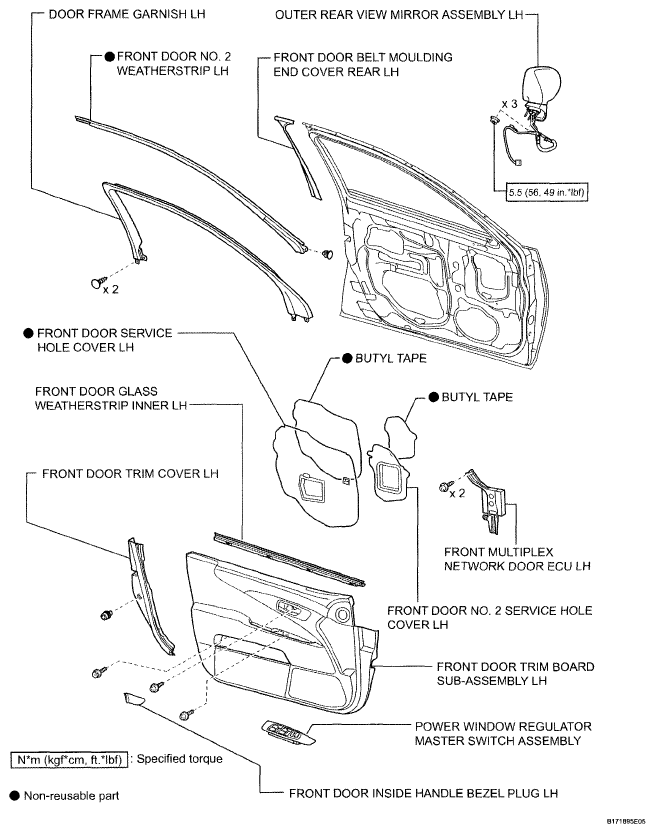

Fig 1: Front Door Belt Moulding Replacement Components With Torque Specifications (1 Of 2)
G04946507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

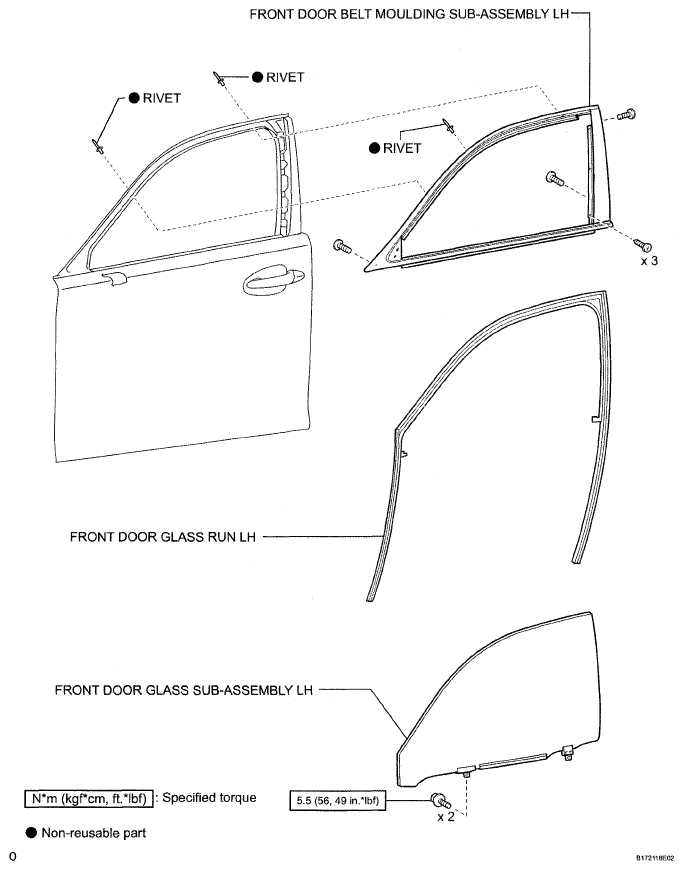

Fig 2: Front Door Belt Moulding Replacement Components With Torque Specifications (2 Of 2)
G04946508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
