Only Wireless Control Function is Inoperative: Wiring Diagram

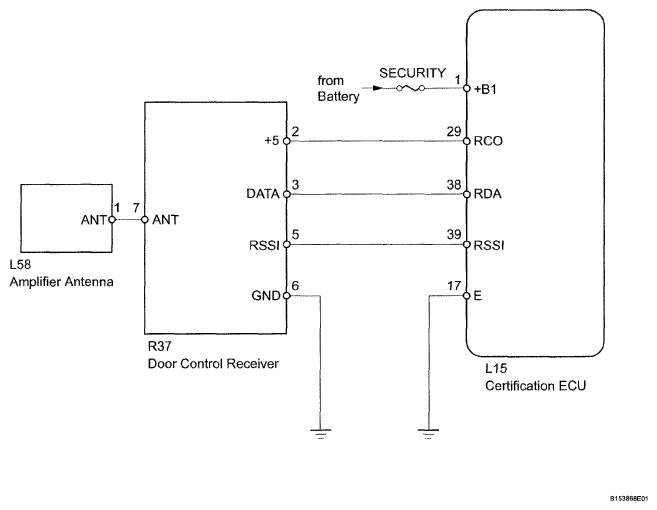

Fig 1: Door Control Receiver - Wiring Diagram

G04951562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
