Room Oscillator does not Recognize Key: Wiring Diagram

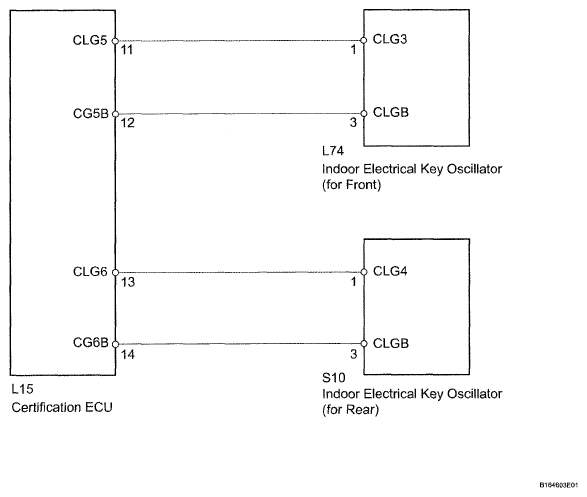

Fig 1: Indoor Electrical Key Oscillator - Wiring Diagram

G04951694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
