Parts Location

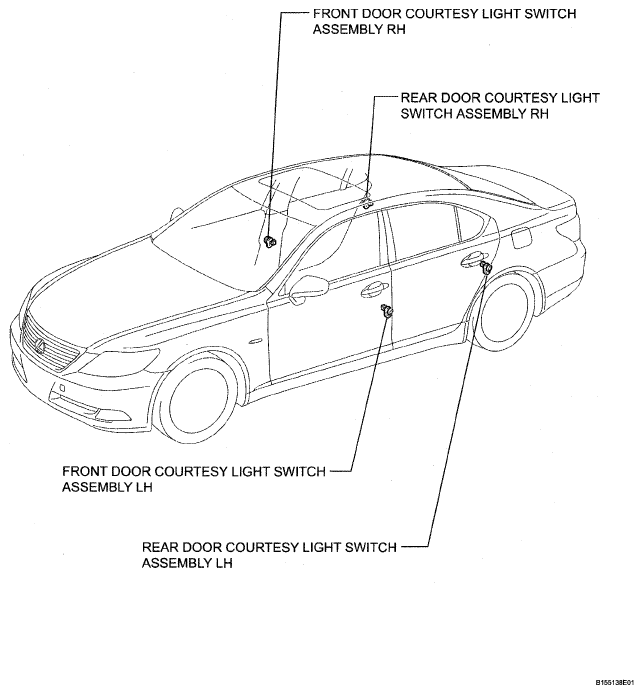

Fig 1: Locating Power Door Lock Control System Components (1 Of 5)
G04951480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

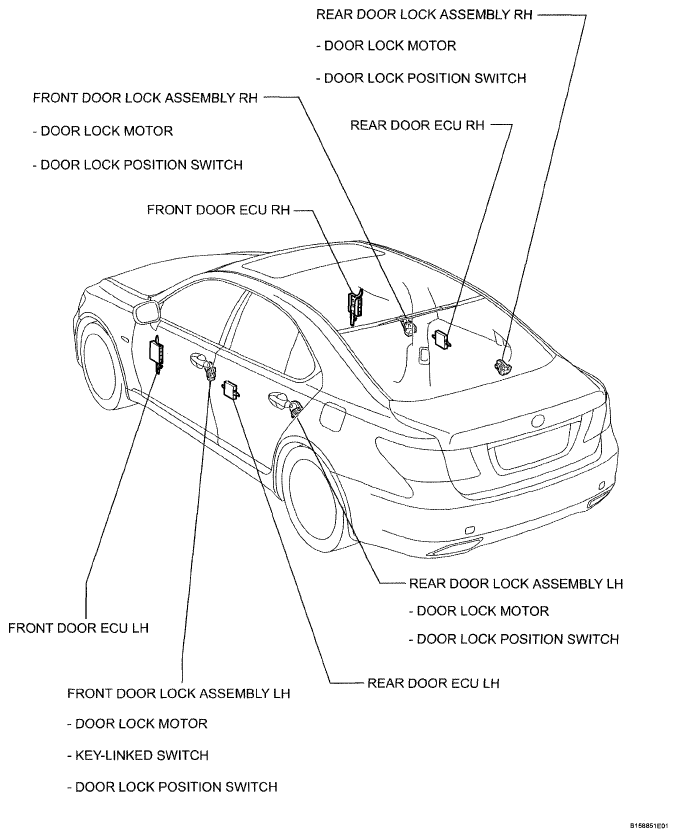

Fig 2: Locating Power Door Lock Control System Components (2 Of 5)
G04951481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

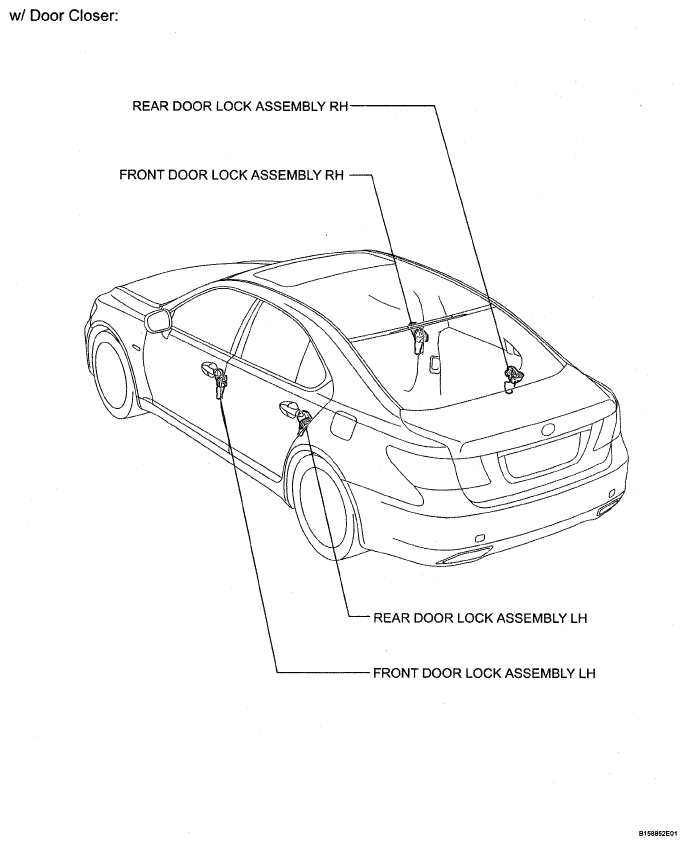

Fig 3: Locating Power Door Lock Control System Components (3 Of 5)
G04951482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

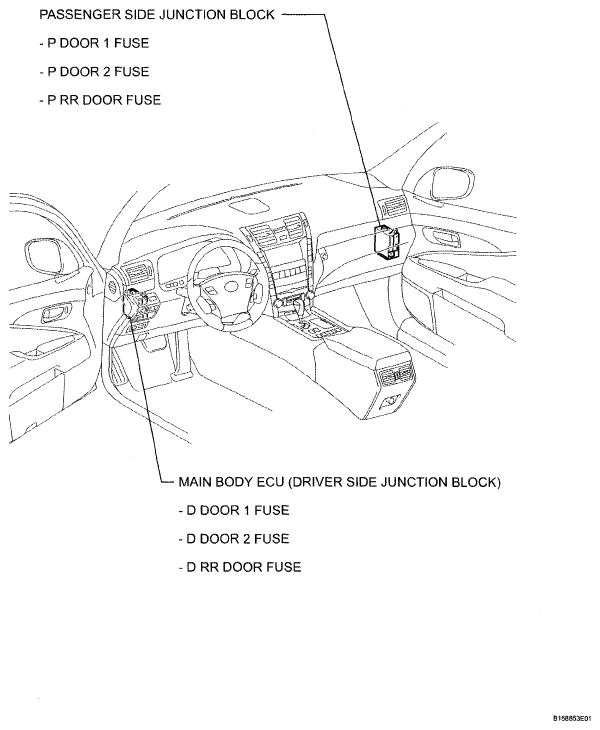

Fig 4: Locating Power Door Lock Control System Components (4 Of 5)
G04951483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

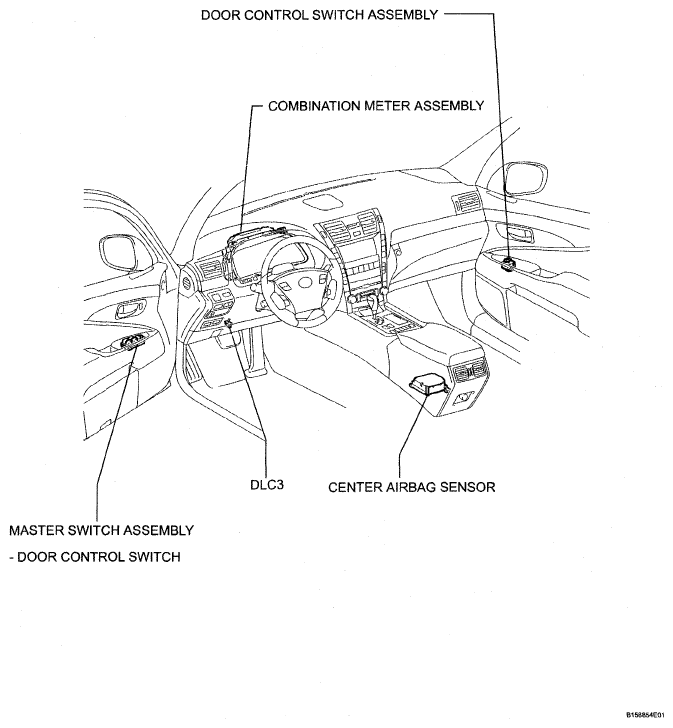

Fig 5: Locating Power Door Lock Control System Components (5 Of 5)
G04951484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
