Only Driver Door LOCK / UNLOCK Functions do not Operate: Wiring Diagram

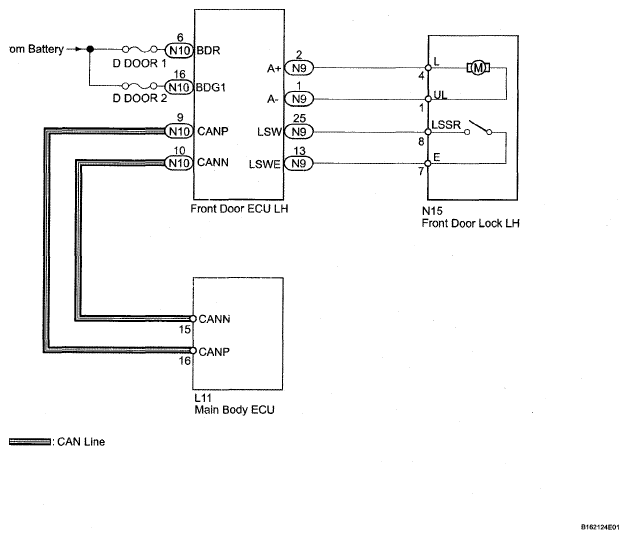

Fig 1: Only Driver Door LOCK / UNLOCK Functions Do Not Operate - Wiring Diagram

G04951515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
