Parts Location

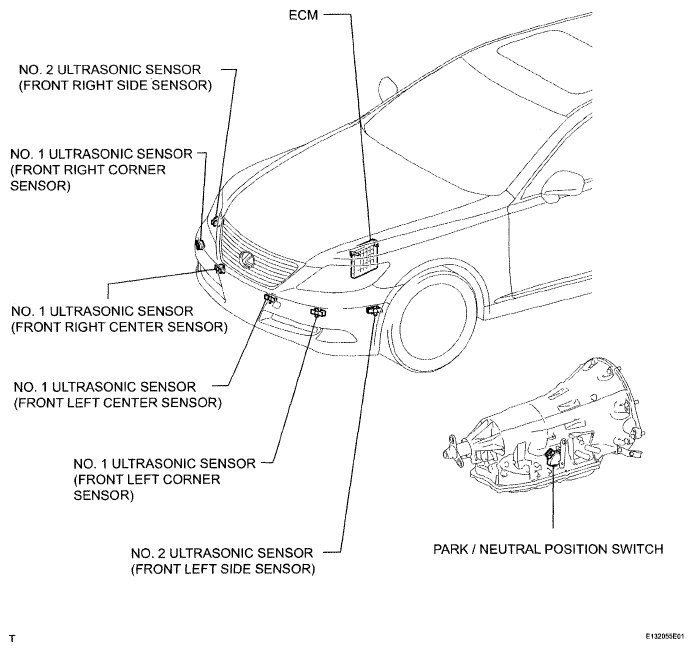

Fig 1: Identifying Intuitive Parking Assist System Parts Location (1 Of 3)
G04951804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

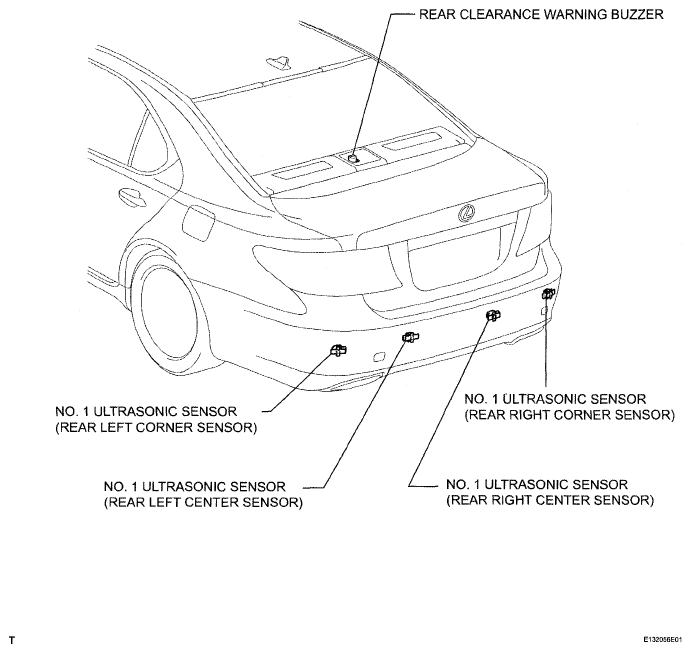

Fig 2: Identifying Intuitive Parking Assist System Parts Location (2 Of 3)
G04951805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

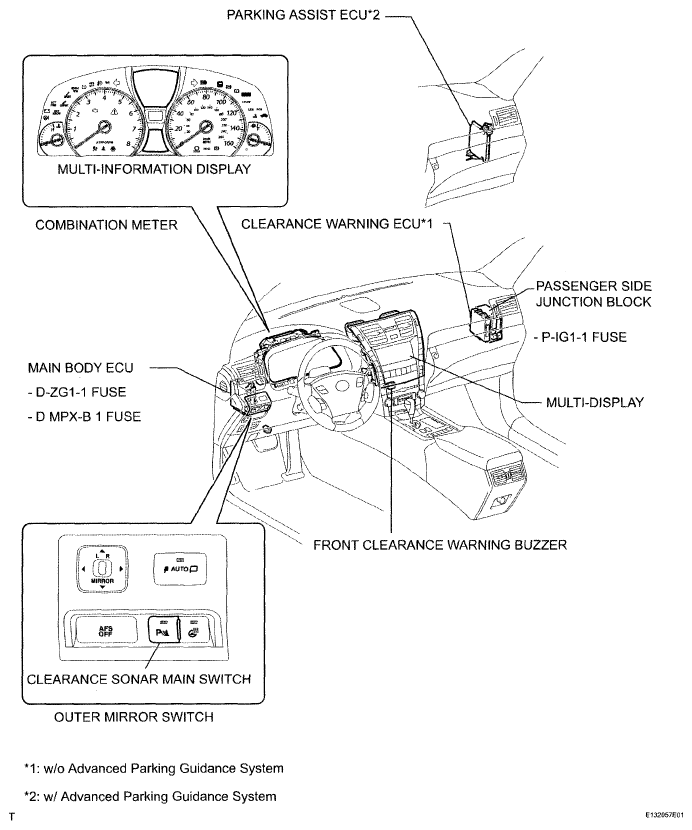

Fig 3: Identifying Intuitive Parking Assist System Parts Location (3 Of 3)
G04951806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
