System Diagram

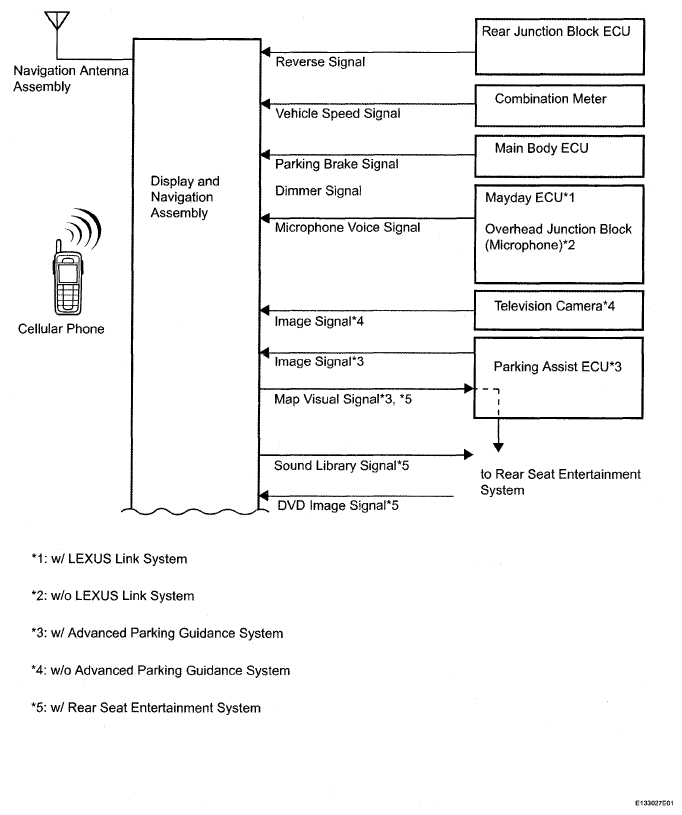

Fig 1: Navigation System Diagram (1 Of 3)
G04945439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

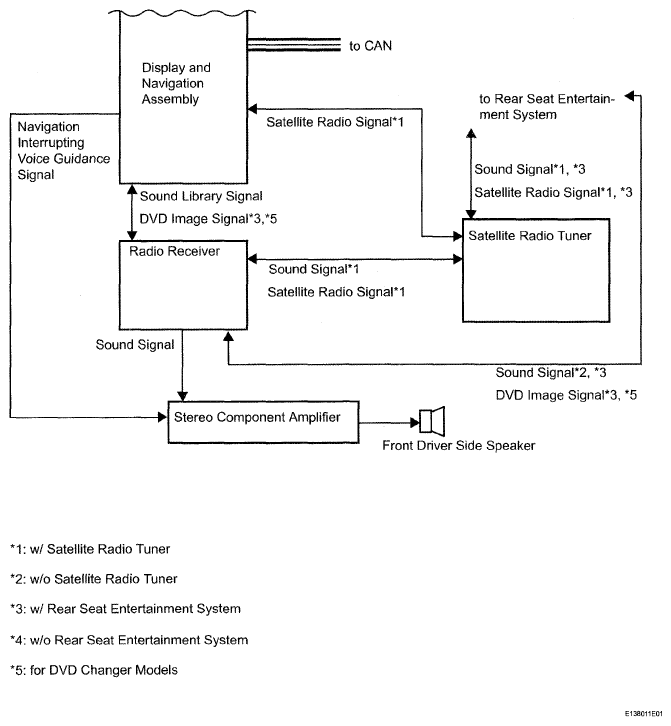

Fig 2: Navigation System Diagram (2 Of 3)
G04945440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

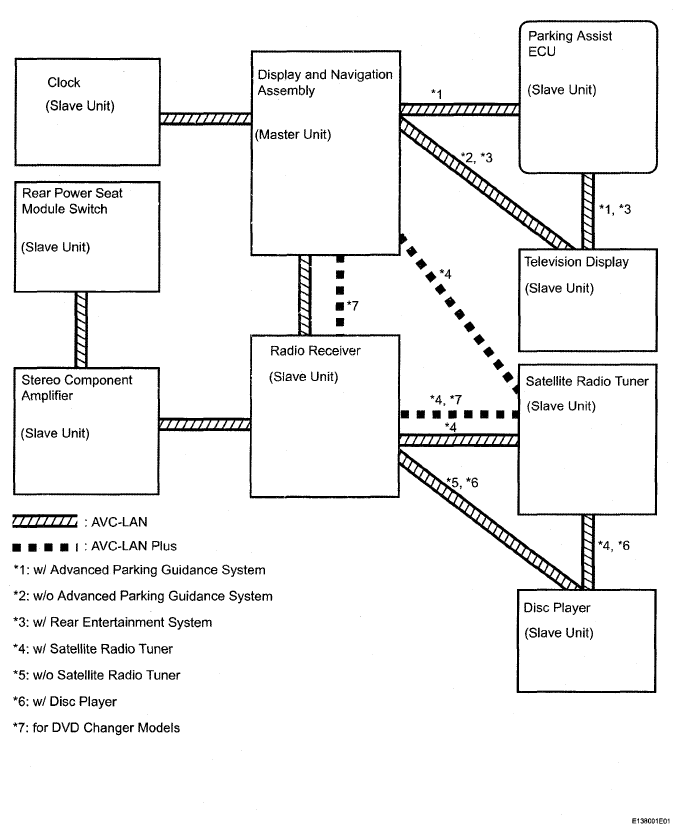

Fig 3: Navigation System Diagram (3 Of 3)
G04945441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
