DTC 4-6 SERVICES, PHONE or PTT Button has Connection Error: Wiring Diagram

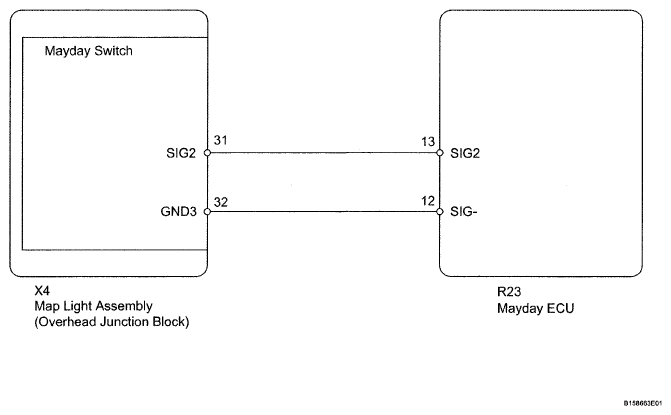

Fig 1: SERVICES, PHONE Or PTT Button Has Connection Error - Wiring Diagram

G04945811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
