Instrument Panel Speaker: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH  (See REMOVAL )
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
   NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE NO. 1 SPEAKER HOLE COVER
   1. Using a screwdriver, detach the 4 clips and remove the hole cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 1: Identifying No. 1 Speaker Hole Cover Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
   1. Remove the 2 bolts.
   2. Remove the speaker and disconnect the speaker connector.
      NOTE: Do not touch the cone part of the speaker.

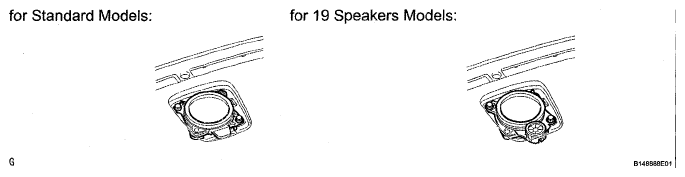

      Fig 2: Identifying Front No. 3 Speaker Assembly Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
6. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   1. Using a screwdriver, detach the 2 clips and 7 claws.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the speaker panel.
      Fig 3: Identifying Instrument Panel Speaker Assembly Clips And Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
   1. Remove the 2 bolts.
   2. Remove the speaker and disconnect the speaker connector.
      NOTE: Do not touch the cone part of the speaker.

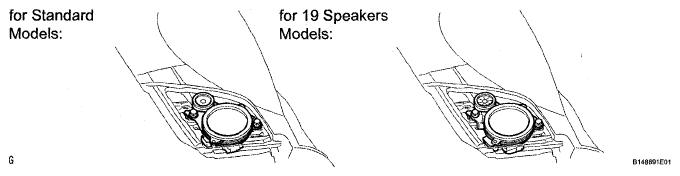

      Fig 4: Identifying Front No. 2 Speaker Assembly Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
