Hazard Warning Switch: Components

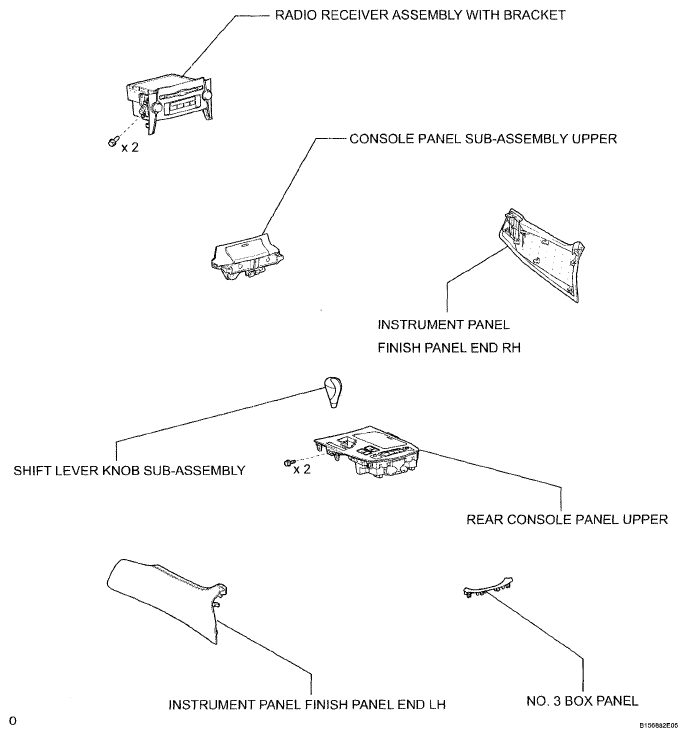

Fig 1: Identifying Hazard Warning Switch Components (1 Of 2)
G04944965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

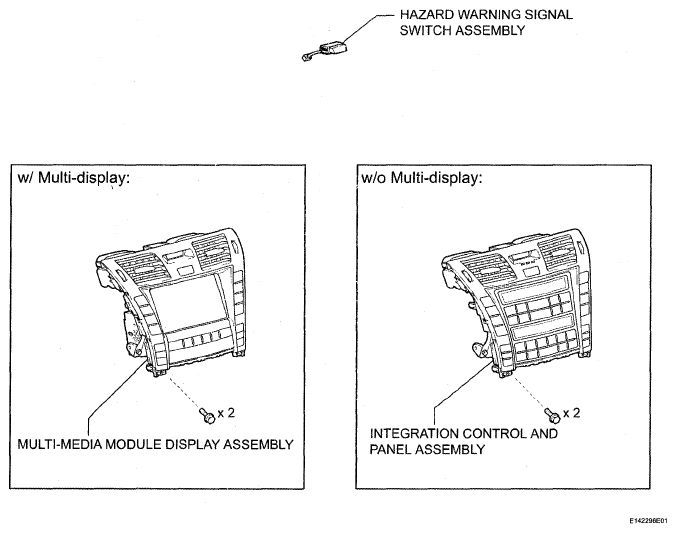

Fig 2: Identifying Hazard Warning Switch Components (2 Of 2)
G04944966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
