FOOTWELL Light: Components

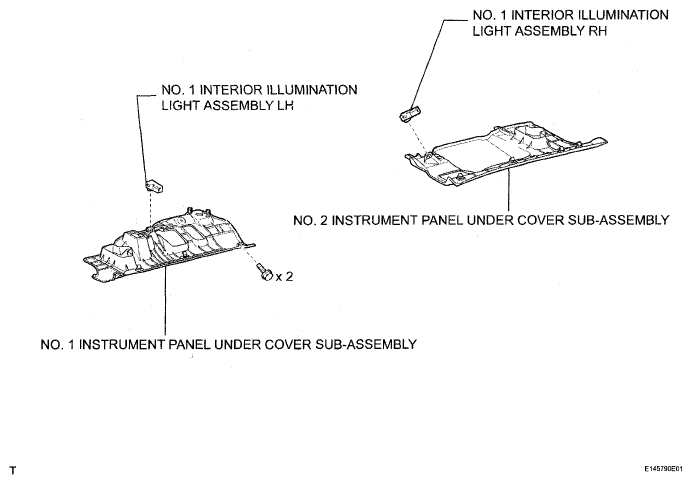

Fig 1: Identifying Footwell Light Components (1 Of 2)
G04944939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

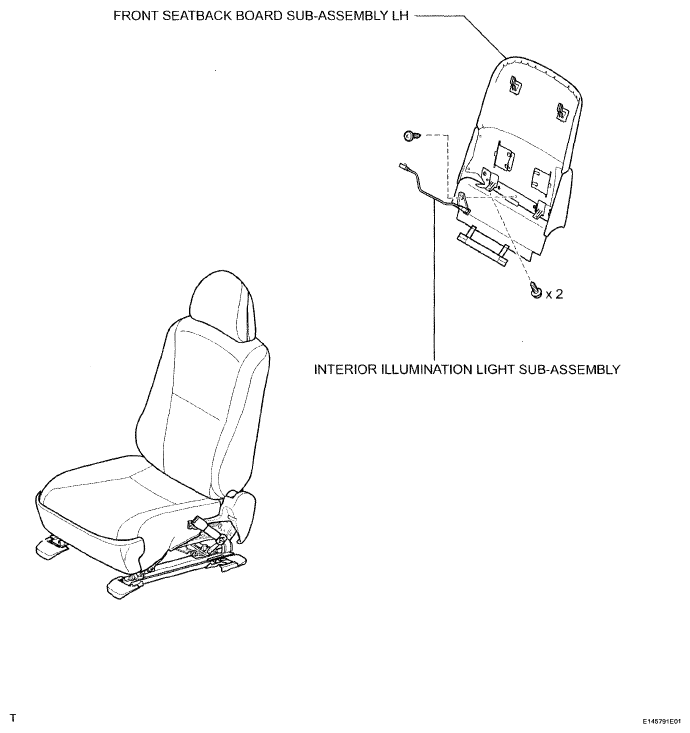

Fig 2: Identifying Footwell Light Components (2 Of 2)
G04944940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
