Rear Package Tray Speaker: Components

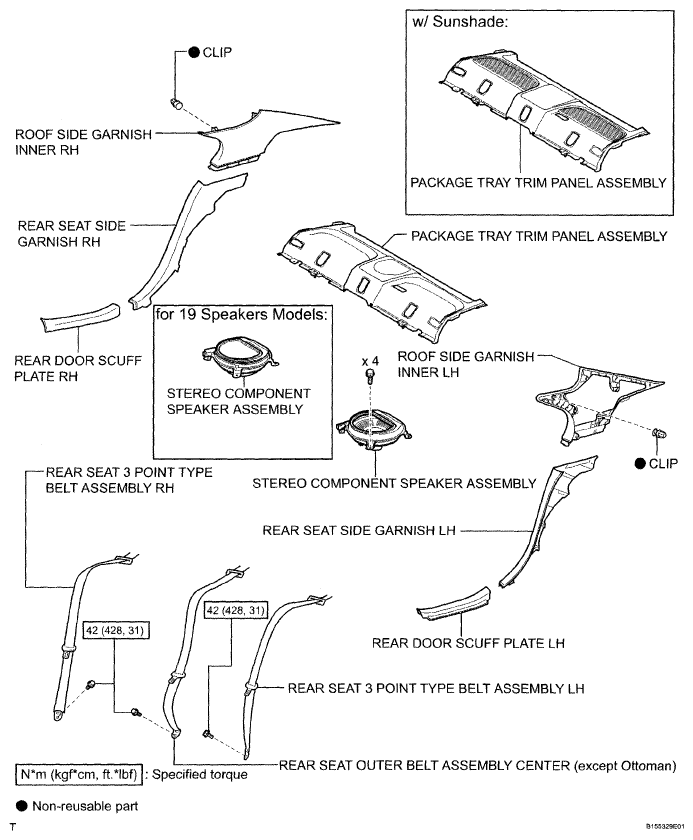

Fig 1: Rear Package Tray Speaker Replacement Components With Torque Specifications

G04954056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
