MULTI-DISPLAY (w/o Navigation System): Components

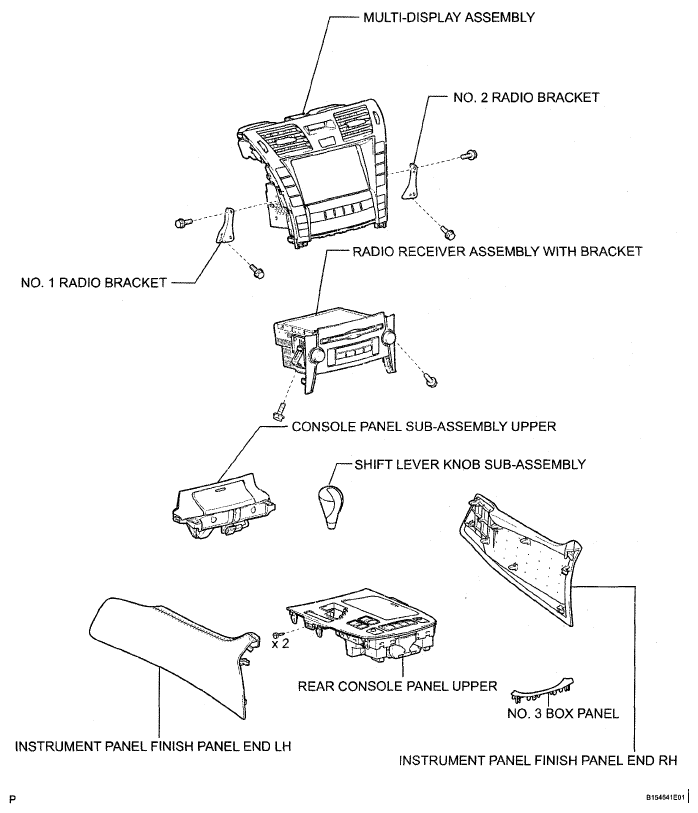

Fig 1: Identifying Multi-Display Components - W/O Navigation System (1 Of 2)
G04953988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Multi-Display Components - W/O Navigation System (2 Of 2)
G04953989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
