Instrument Panel Speaker: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
   1. Connect the connector.
   2. Temporarily install the speaker by aligning the positioning pins of the speaker with the instrument panel.
   3. Install the speaker with the 2 bolts.
      NOTE:

      • Do not touch the cone part of the speaker.
      • When installing the speaker to the instrument panel be careful that get caught the wires do not get caught between the parts.

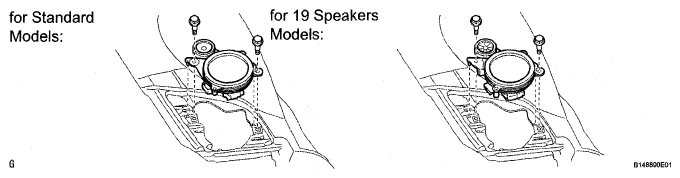

      Fig 1: Identifying Front No. 2 Speaker Assembly Bolts
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   1. Attach the 2 clips and 7 claws to install the panel.
      Fig 2: Identifying Instrument Panel Speaker Assembly Clips And Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL FRONT PILLAR GARNISH LH
4. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY
   1. Connect the speaker connector.
   2. Temporarily install the speaker by aligning the positioning pins of the speaker with the instrument panel.
   3. Install the speaker with the 2 bolts.
      NOTE:

      • Do not touch the cone part of the speaker.
      • When installing the speaker to the instrument panel be careful that get caught the wires do not get caught between the parts.

      Fig 3: Identifying Front No. 3 Speaker Assembly Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL NO. 1 SPEAKER HOLE COVER
   1. Attach the 4 clips to install the hole cover.
   Fig 4: Identifying No. 1 Speaker Hole Cover Clips
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
8. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
