Front Door Speaker: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
   1. Connect the connector.
   2. Temporarily install the speaker by attaching the claws of the speaker to the door panel.
   3. Install the speaker with the 3 screws.
      NOTE: Do not touch the cone part of the speaker.

      HINT:

      Install the screws in the order shown in the illustration.

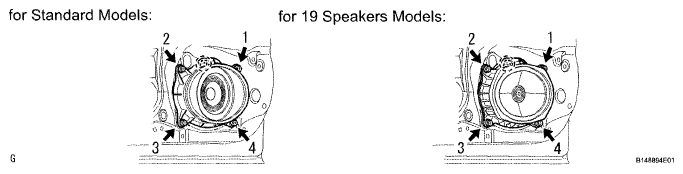

      Fig 1: Locating Front No. 1 Speaker Assembly Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH  (See INSTALLATION )
3. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY  (See INSTALLATION )
4. INSTALL DOOR INSIDE HANDLE BEZEL  (See INSTALLATION )
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
7. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
