Amplifier Antenna: Installation

  1. INSTALL AMPLIFIER ANTENNA ASSEMBLY
    1. Use non-residue solvent to clean the area on the glass where the antenna will be installed.
      NOTE: Do not use non-residue solvent to clean the antenna's contact points. Doing so may cause improper contact between the antenna and glass.
    2. Temporarily install the antenna with a new clip labeled A, and then install the antenna with the 2 nuts labeled B.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

      NOTE:
      • Just before installing the antenna to the glass, remove the protective cover of the antenna's contact points.
      • When removing the protective cover of the antenna's contact points, make sure the cover does not touch the contact points.
      • Never touch the contact points after removing the protective cover.
      • Do not reuse the clip labeled A.
    3. Attach the 4 clips labeled C.
    4. Connect the antenna connectors.

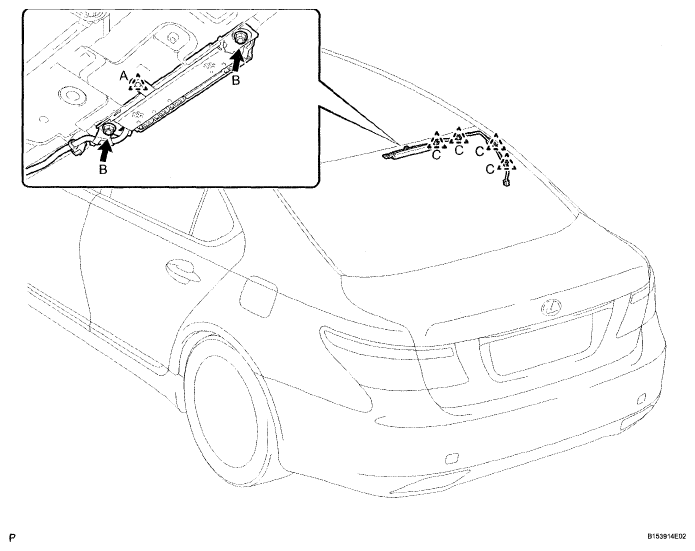

      Fig 1: Identifying Amplifier Antenna Assembly Clips And Nuts
      G04954108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Return the roof headlining to its original position. For standard body, refer to the following procedures (see INSTALLATION ).

      For long body, refer to the following procedures (see INSTALLATION ).

  2. INSTALL ASSIST GRIP SUB-ASSEMBLY  (See INSTALLATION )
  3. INSTALL ROOF SIDE REGISTER BEZEL RH (w/ Rear Cooler)  (See INSTALLATION )
  4. INSTALL ROOF SIDE REGISTER BEZEL LH (w/ Rear Cooler)  (See INSTALLATION )
  5. INSTALL COAT HOOK  (See INSTALLATION )
  6. INSTALL REAR VANITY LIGHT ASSEMBLY  (See INSTALLATION )
  7. INSTALL SPOT LIGHT ASSEMBLY  (See INSTALLATION )
  8. INSTALL ROOF CONSOLE BOX ASSEMBLY (for Long Body)  (See INSTALLATION )
  9. INSTALL SPOT LIGHT LENS (for Long Body)  (See INSTALLATION )
  10. INSTALL ROOF SIDE GARNISH INNER RH  (See INSTALLATION )
  11. INSTALL ROOF SIDE GARNISH INNER LH  (See INSTALLATION )
  12. INSTALL REAR SEAT SIDE GARNISH RH  (See INSTALLATION )
  13. INSTALL REAR SEAT SIDE GARNISH LH  (See INSTALLATION )
  14. INSTALL REAR DOOR SCUFF PLATE RH
    1. Install the rear door scuff plate RH for standard body (see INSTALLATION ).
    2. Install the rear door scuff plate RH for long body (see INSTALLATION ).
  15. INSTALL REAR DOOR SCUFF PLATE LH
    1. Install the rear door scuff plate LH for standard body (see INSTALLATION ).
    2. Install the rear door scuff plate LH for long body (see INSTALLATION ).
  16. INSTALL REAR SEAT ASSEMBLY
    1. Install the rear seat assembly for power seat (see INSTALLATION ).
    2. Install the rear seat assembly for ottoman (see INSTALLATION ).
    3. Install the rear seat assembly for fixed seat (see INSTALLATION ).
  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  18. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
  19. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  20. CHECK SRS WARNING LIGHT
    1. Check SRS warning light (see DIAGNOSIS SYSTEM ).
