Parts Location

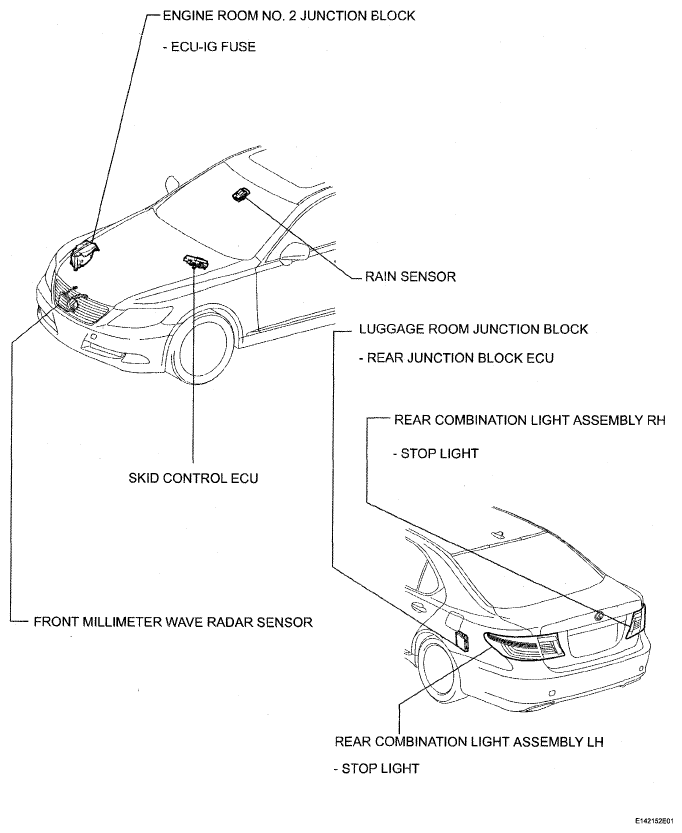

Fig 1: Identifying Dynamic Radar Cruise Control Components Location (1 Of 2)
G04951402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

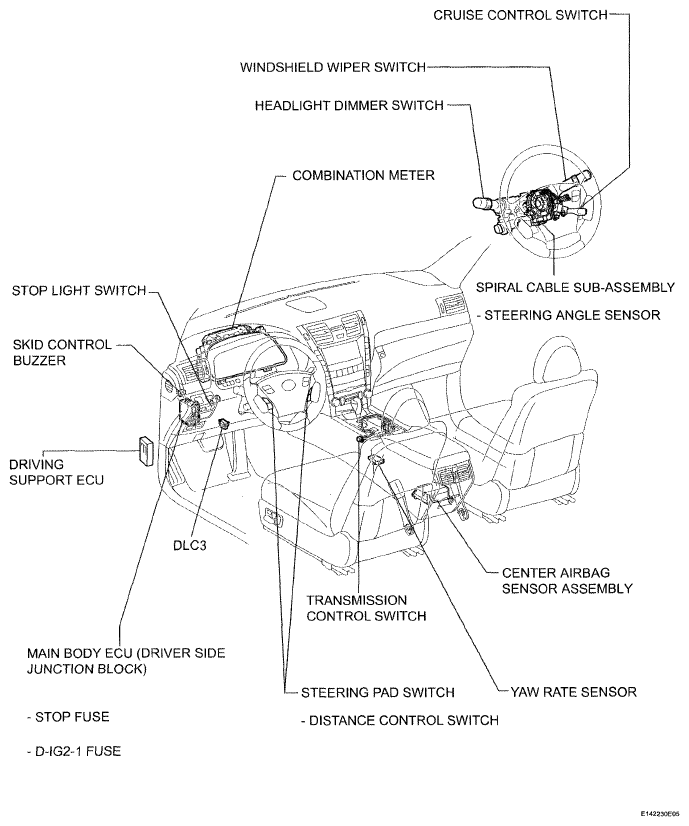

Fig 2: Identifying Dynamic Radar Cruise Control Components Location (2 Of 2)
G04951403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
