Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control >> Cruise Control System >> Parts Location

Parts Location

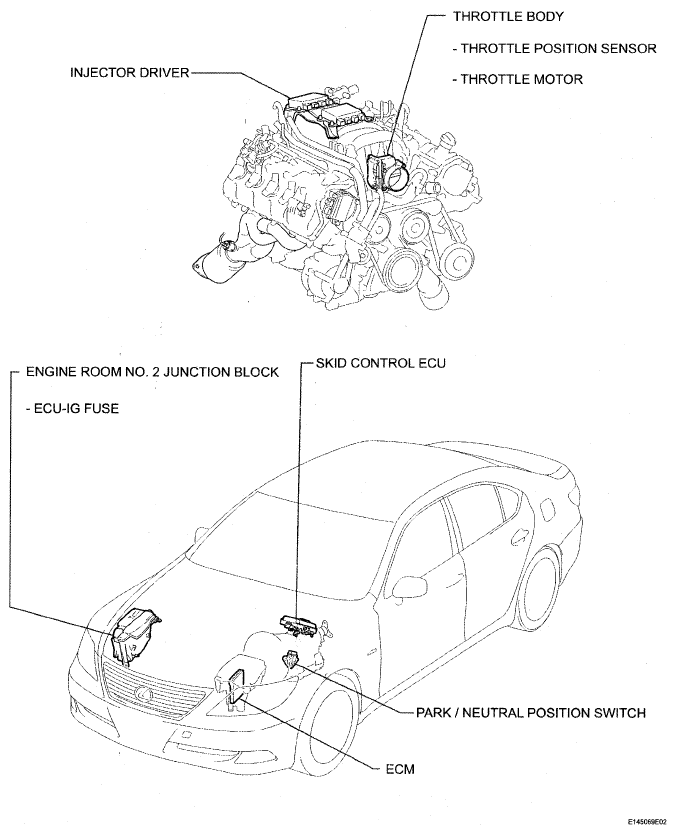

Fig 1: Identifying Cruise Control System Components Location (1 Of 2)
G04951373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

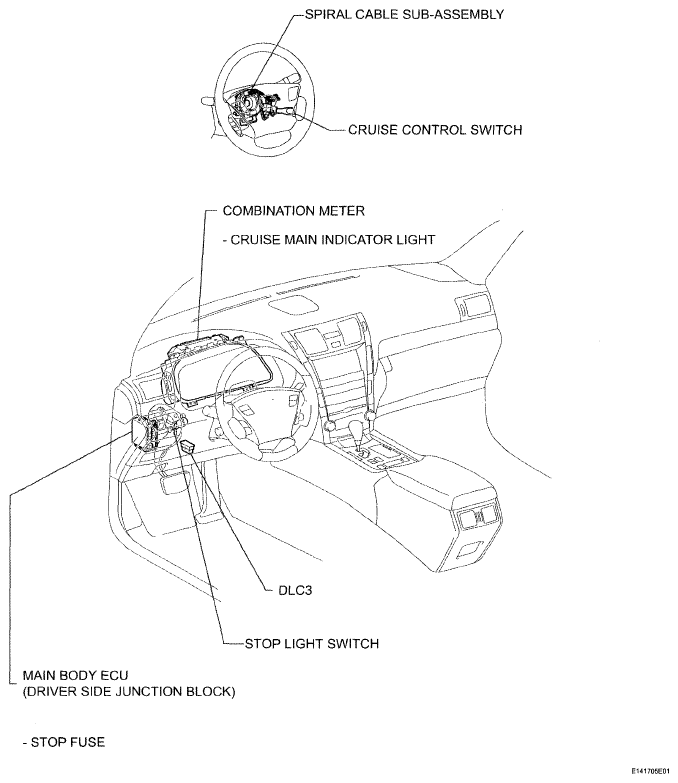

Fig 2: Identifying Cruise Control System Components Location (2 Of 2)
G04951374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
