Parts Location — 2007 Lexus LS 460L Service Manual ~ LEMON Manuals

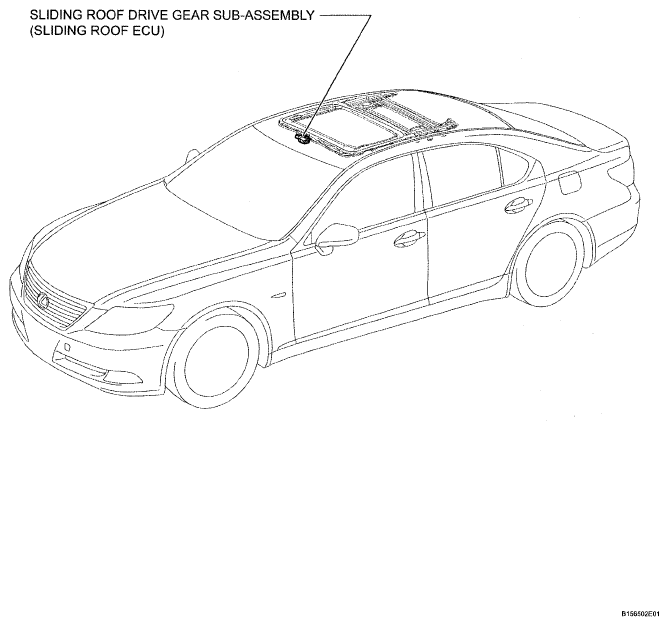

Fig 1: LIN Communication System Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

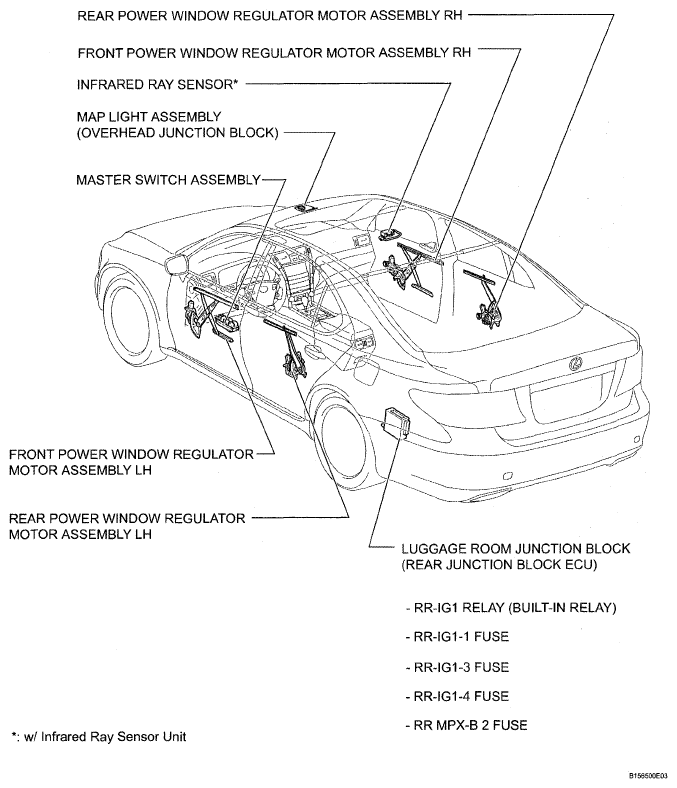

Fig 2: LIN Communication System Parts Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

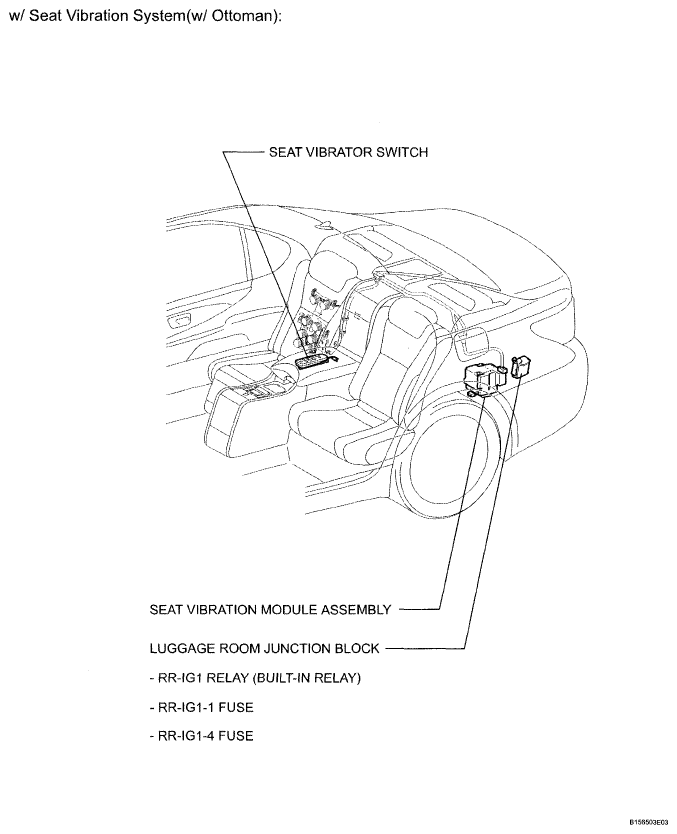

Fig 3: LIN Communication System Parts Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

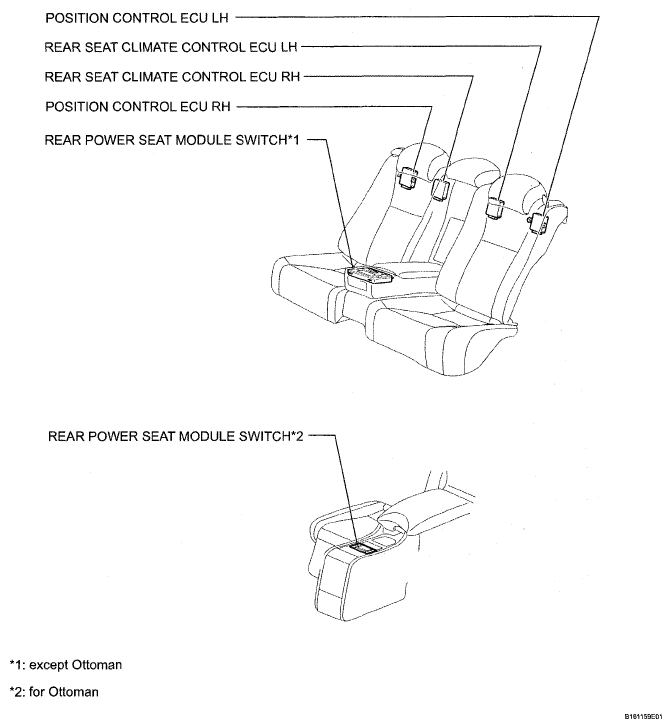

Fig 4: LIN Communication System Parts Location (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

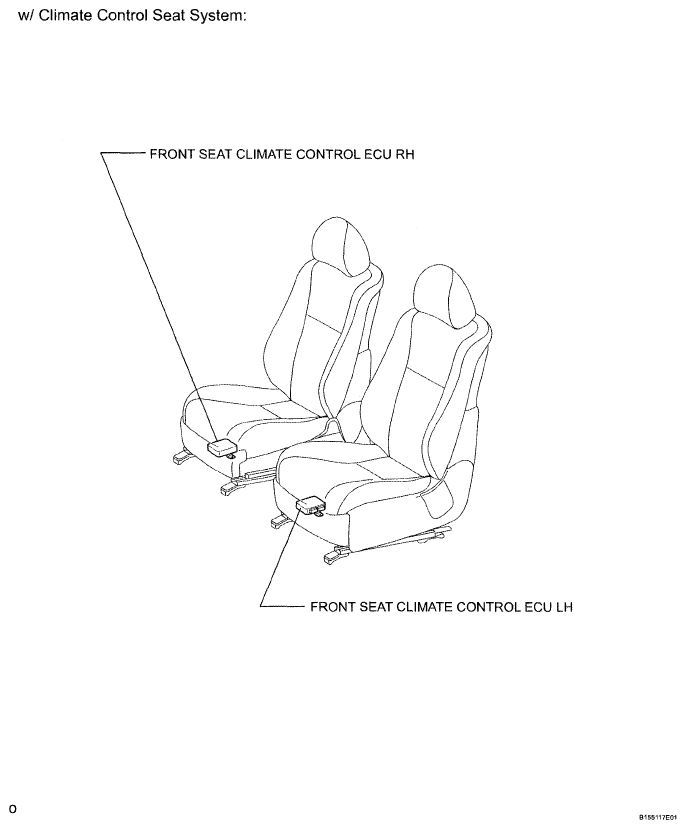

Fig 5: LIN Communication System Parts Location (5 Of 6)

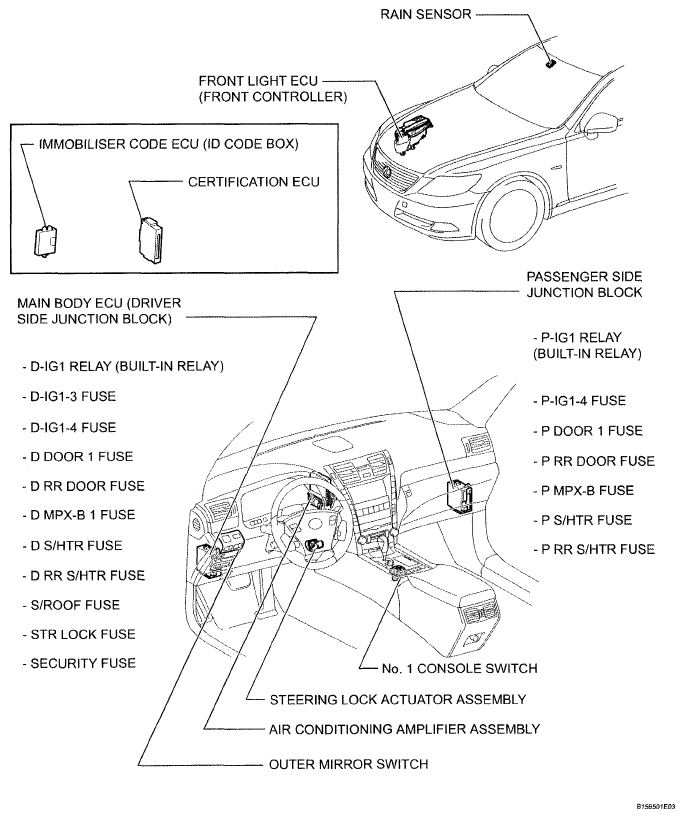

Fig 6: LIN Communication System Parts Location (6 Of 6)
