Mayday Battery: Components

Fig 1: Identifying Mayday Battery Components - W/O Rear Cooler
G04945837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Mayday Battery Components - W/ Rear Cooler
G04945838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

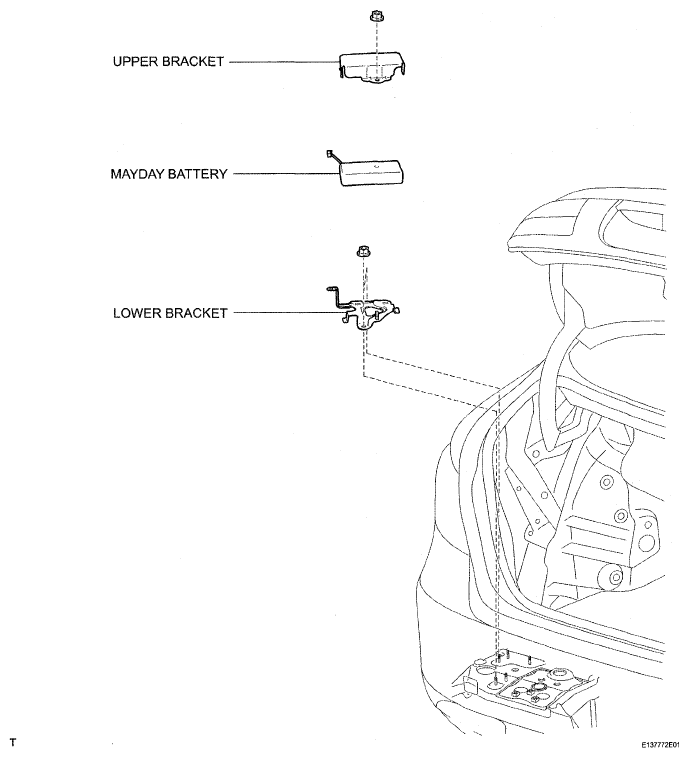

Fig 3: Identifying Mayday Battery Components
G04945839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
