ECM Communication Stop Mode: Wiring Diagram

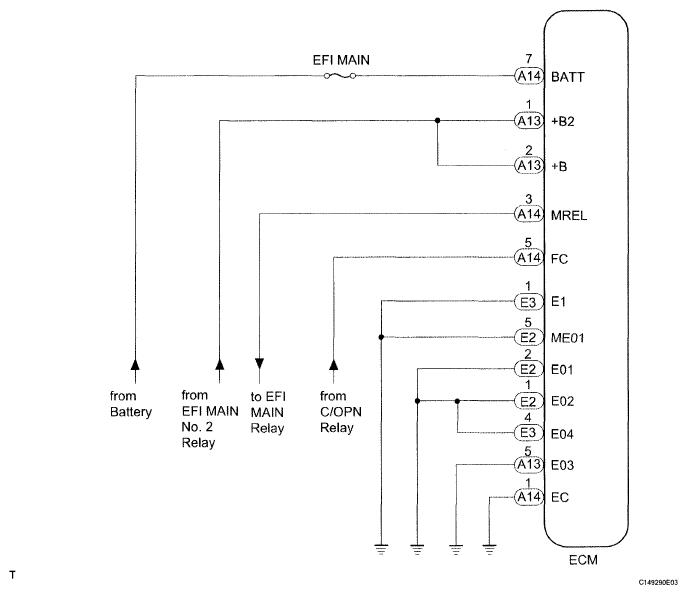

Fig 1: ECM Communication Stop Mode - Wiring Diagram

G04953631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
