DTC U1005 Lost Communication with Electronically Controlled Brake Gateway Module: Wiring Diagram

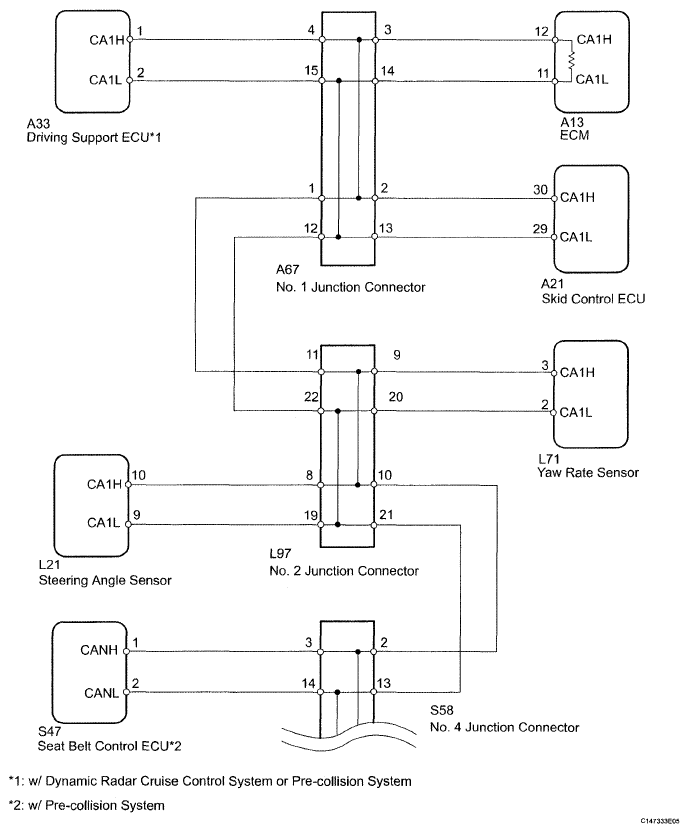

Fig 1: Electronically Controlled Brake Gateway Module - Wiring Diagram (1 Of 2)
G04953552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

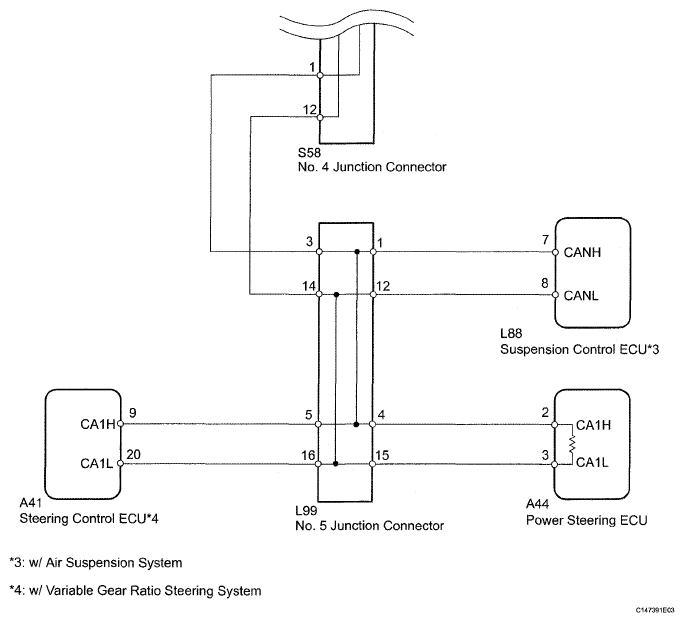

Fig 2: Electronically Controlled Brake Gateway Module - Wiring Diagram (2 Of 2)
G04953553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
