Inspection Procedure
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.NOTE:
- After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
- Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
- CHECK FOR OPEN IN CAN BUS WIRE (REAR POWER SEAT MODULE SWITCH BRANCH WIRE)

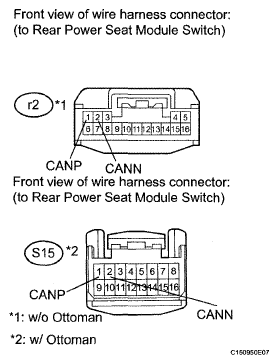

- Disconnect the r2 and S15 rear power seat module switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
w/o Ottoman
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Switch Condition Specified Condition r2-1 (CANP) - r2-2 (CANN) Engine switch off 54 to 69 Ω w/ Ottoman
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Switch Condition Specified Condition S15-1 (CANP) - S15-2 (CANN) Engine switch off 54 to 69 Ω
NG: REPAIR OR REPLACE REAR POWER SEAT MODULE SWITCH BRANCH WIRE OR CONNECTOR (CANP, CANN)
OK: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - BATTERY AND BODY GROUND)
- Connect the cable to the negative (-) battery terminal.NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
- Disconnect the r2 or S15 rear power seat module switch connector.

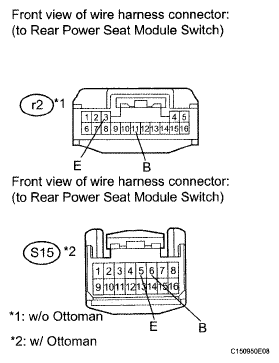

- Measure the resistance according to the value(s) in the table below.
Standard resistance
w/o Ottoman
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition r2-3 (E) - Body ground Always Below 1 Ω w/ Ottoman
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition S15-5 (E) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard voltage
w/o Ottoman
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition r2-11 (B) - Body ground Always 11 to 14 V w/ Ottoman
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition S15-6 (B) - Body ground Always 11 to 14 V Result
RESULT REFERENCE CHARTResult Proceed to OK (w/ Ottoman) A OK (w/o Ottoman) B NG C
B: REPLACE REAR POWER SEAT MODULE SWITCH (See DISASSEMBLY )
C: REPAIR OR REPLACE HARNESS OR CONNECTOR
A: REPLACE REAR POWER SEAT MODULE SWITCH (See DISASSEMBLY )
- Connect the cable to the negative (-) battery terminal.
