DTC U0132 Lost Communication with Ride Level Control Module: Wiring Diagram

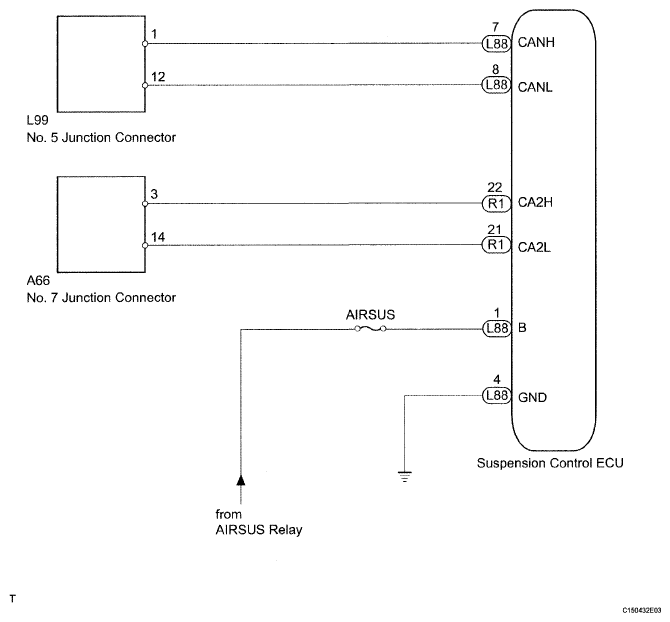

Fig 1: Lost Communication With Ride Level Control Module - Wiring Diagram

G04953410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
