DTC U0131 Lost Communication with Power Steering Control Module: Wiring Diagram

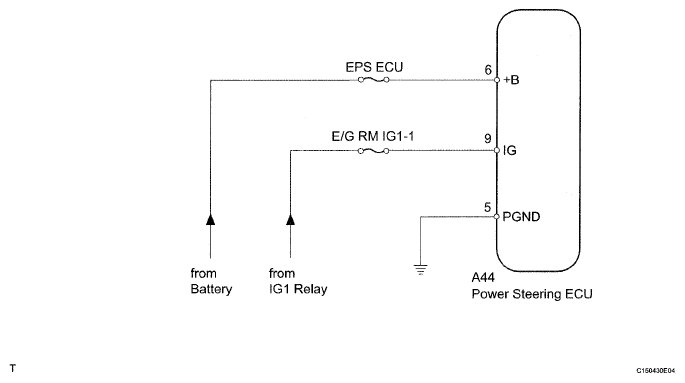

Fig 1: Lost Communication With Power Steering Control Module - Wiring Diagram
G04953408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
