DTC U0130 Lost Communication with Steering Effort Control Module: Wiring Diagram

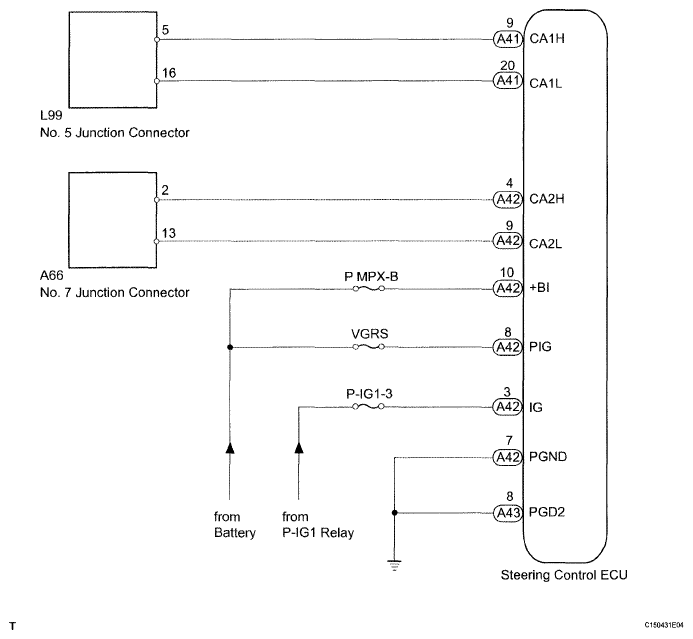

Fig 1: Lost Communication With Steering Effort Control Module - Wiring Diagram
G04953405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
