DTC U0123 Lost Communication with Yaw Rate Sensor Module: Wiring Diagram

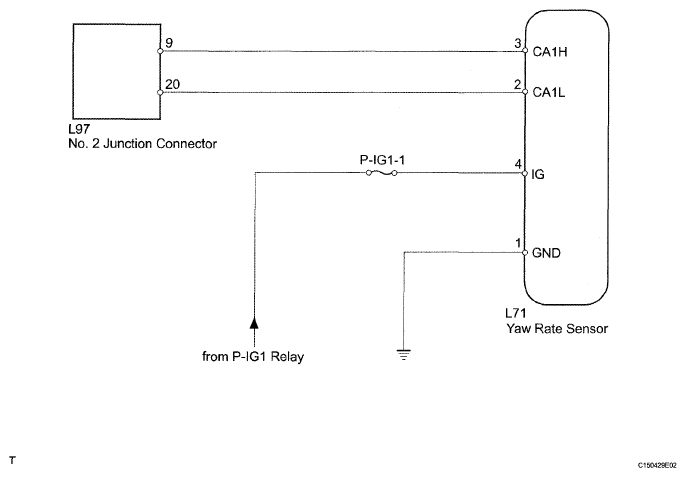

Fig 1: Lost Communication With Yaw Rate Sensor Module - Wiring Diagram

G04953396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
