DTC B22BB Communication Error with Brake System Control Module (Vehicle Speed Data): Wiring Diagram

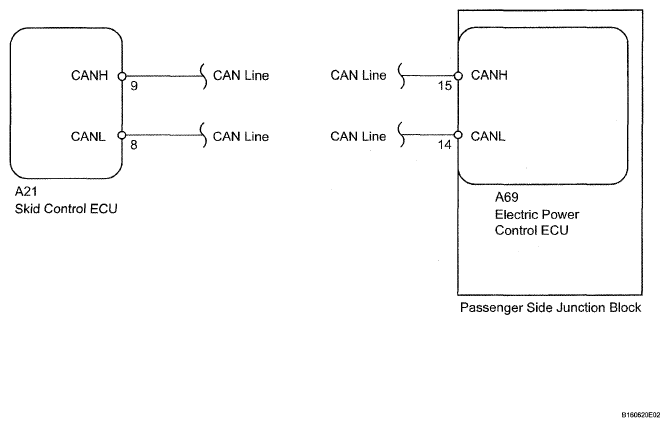

Fig 1: Electric Power Control ECU - Wiring Diagram

G04945745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
