Sound Signal Circuit between Multi-display Controller and Navigation Assembly: Wiring Diagram

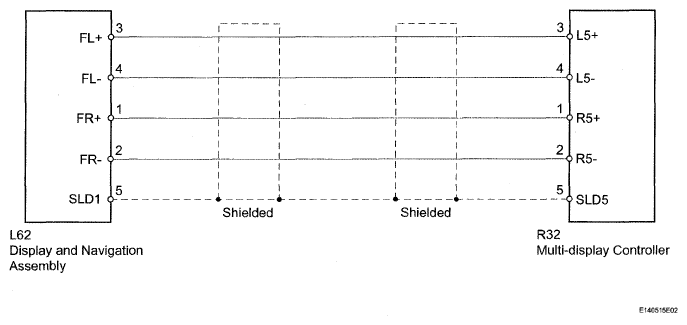

Fig 1: Identifying Sound Signal Circuit Between Multi-display Controller And Navigation Assembly Wiring Diagram
G04949021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
