Rear Side Switch Module LIN Communication Malfunction: Wiring Diagram

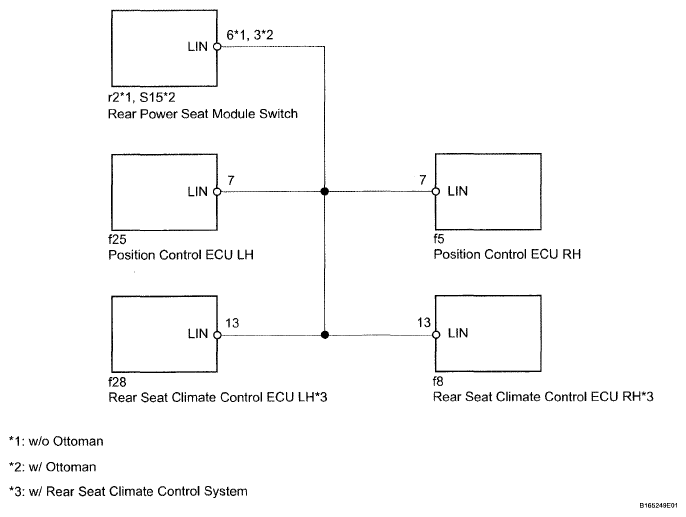

Fig 1: Rear Side Switch Module LIN Communication Malfunction - Wiring Diagram

G04947033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
