DTC B2405 Sub Bus LIN Module Communication Malfunction: Wiring Diagram

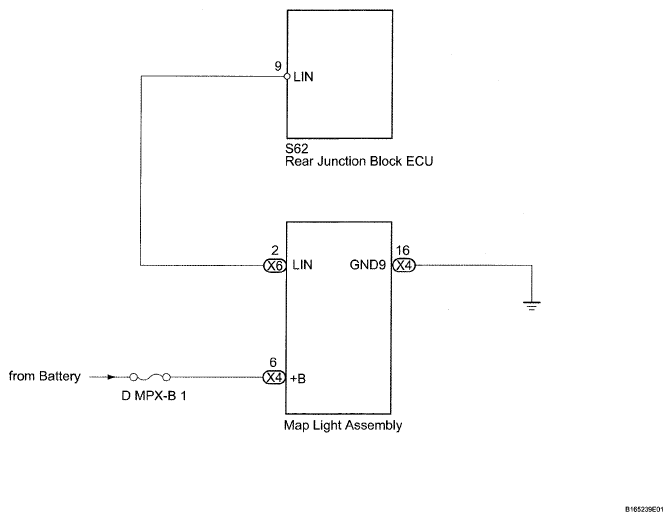

Fig 1: Sub Bus LIN Module Communication Malfunction - Wiring Diagram

G04946987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
