DTC 5-1 LEXUS Link Communication Error: Wiring Diagram

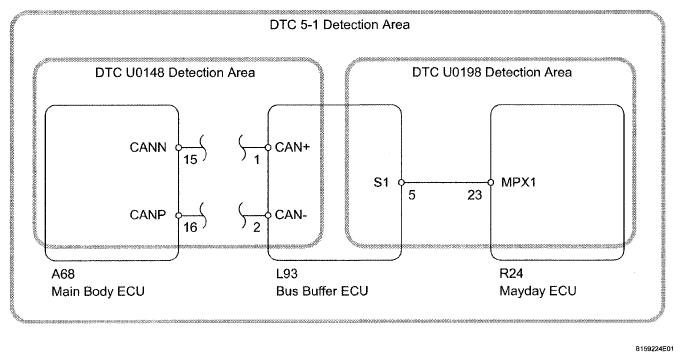

Fig 1: LEXUS Link Communication Error - Wiring Diagram

G04945817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
