DTC 4-3 Overhead Module Microphone Error: Wiring Diagram

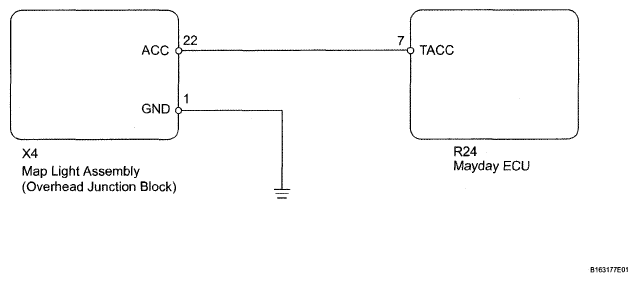

Fig 1: Overhead Module Microphone Error - Wiring Diagram

G04945806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
