DTC U0327 Software Incompatibility with Vehicle Security Control Module: Wiring Diagram

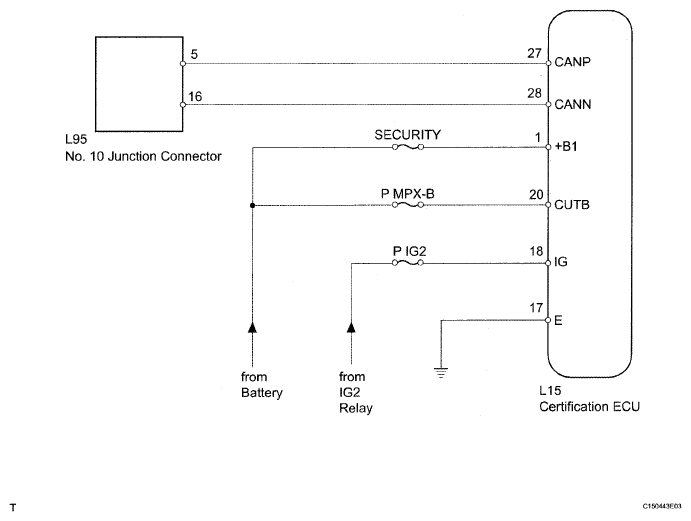

Fig 1: Vehicle Security Control Module - Wiring Diagram

G04953452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
